Universal 12V Thermostat Relay Wire Kits 3/8" Electric Radiator Engine Fan Thermostat Temperature Switch Sensor Set

About the Relay Relay is an electrical control device that usually used in automatic control circuit The relay in fact is an automatic switch which uses a smaller current to control a larger current Thermostat Relay Kit Instructions RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans What's the Relay Used for Compatible with almost all automobiles and devices equipped with a 12V DC power supply Like starter kills, power door lock/actuator control, change a low current output to high current, add ignition/accessory outputs,control motors/other electronics. It is also suitable for automobile used for control, alarms, horn, headlight and more. About the Relay Pins Pins 85 & 86 - are used to turn 'on' the relay. You need a positive (+) and negative (-) power source to turn on the relay Pin 85 - is usually negative (-) Pin 86 - is usually positive (+) Pin 30 - is either a (+) or (-) source that feeds Pin 87 or Pin 87a Pin 87 - when the relay is 'on': Pin 30 and Pin 87 are connected What's Note 1.The relay is rated for 30A, while the socket 14AWG wires are not big enough for the rated 30/40 amps. 2.If you are intending to run 30 amps continuously, you could remove the spade contacts from the connector, carefully open the crimps securing the wire to the contact and recrimp/solder 10 gauge wires to it. 3.Also, you can use 6.3 mm female connectors to connect directly to the relay pins. The relay should be good for 30 amps.

• The engine cooling fan resistor kit is designed to match the original hardware required to repair
• This relay kit is set up to turn your electric fan on at 185 degrees and shut off at 175 degrees and will work with any 12 volt system

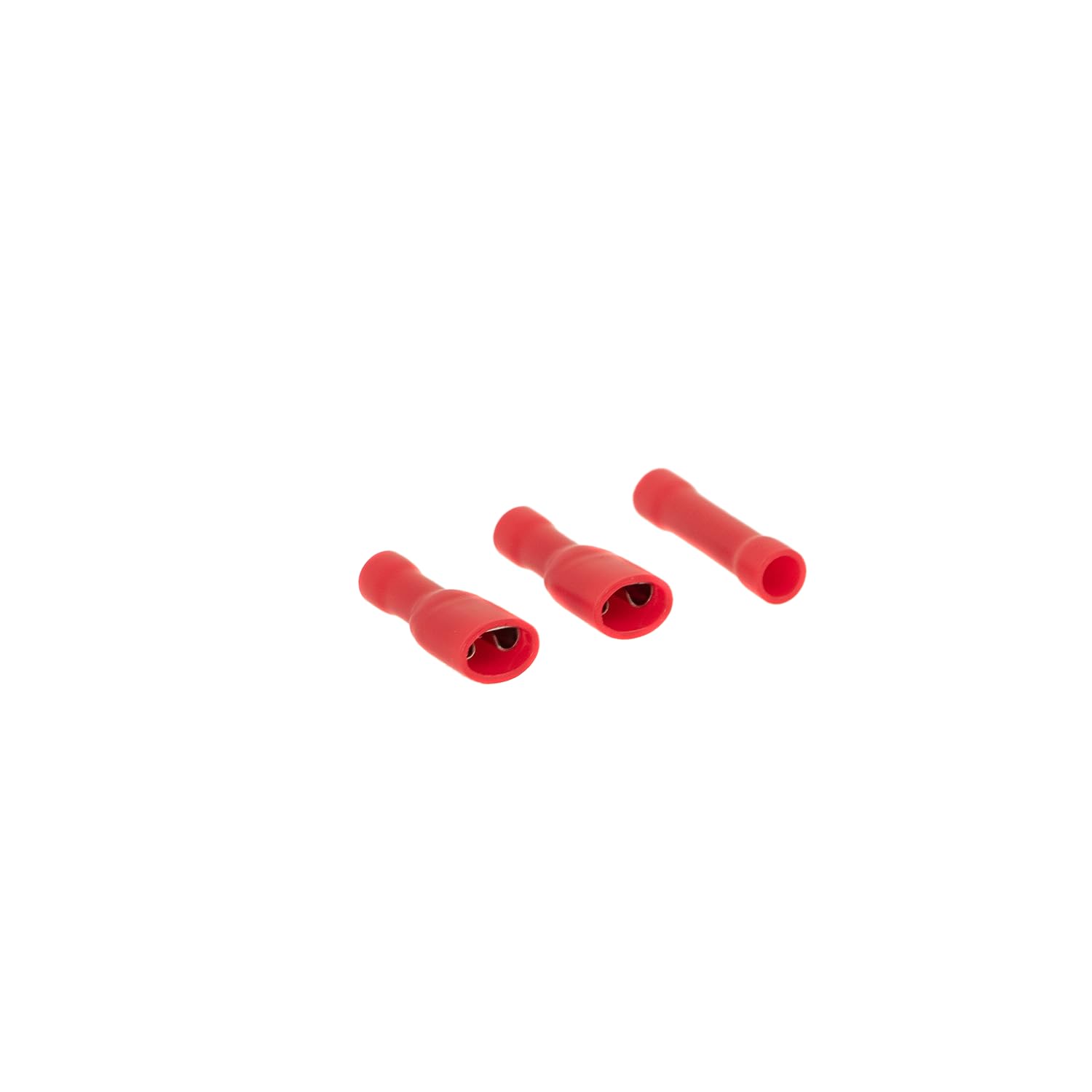

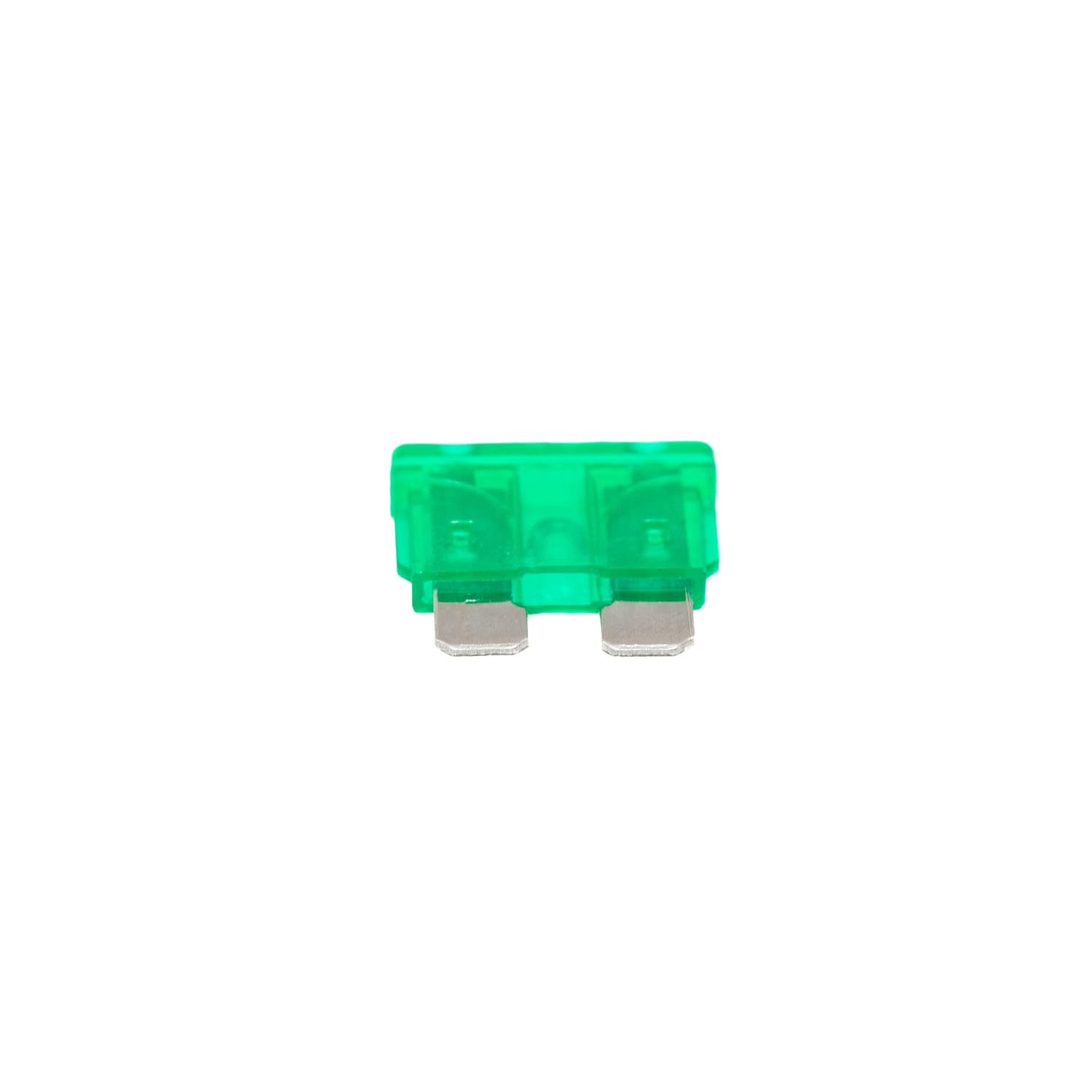

• This thermostat kit includes everything you'll need to hook up to your fan, includes a brass adapter to install the sending unit, wires, relay switch, circut breaker, terminals and mounting screws
• Relay Wire Kits test-fitted prior to market release, ensuring perfect drop-in fit
