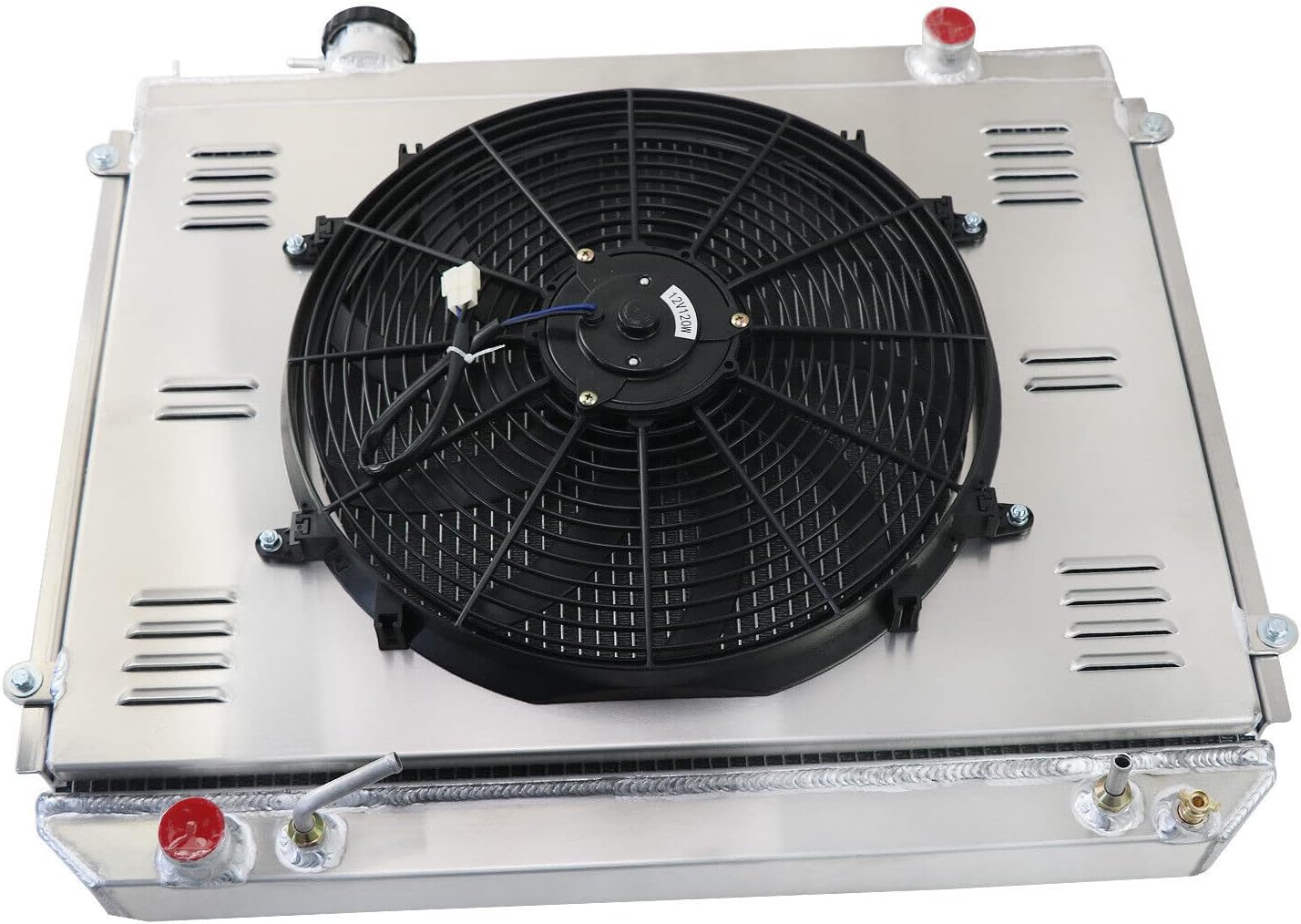

3 Row Aluminum Radiator For 1995-2004 Toyota Tacoma 2.4L 2.7L L4 3.4L,All Aluminum Radiator+Shroud Fan+Relay Kit

Package included： 1 X 3-ROW AA5052 Aluminum Radiator+1.3BAR CNC CAP 1 X AA5052 Aluminum Shroud 1X 16" 120W Fan 1 X Thermostat Temperature Switch Relay Kit VEHICLE Fitment： For 1995-2004 Toyota Tacoma 2.7L For 1995-2004 Toyota Tacoma 2.4L For 1995-2004 Toyota Tacoma 3.4L Note: Fits 2.4L L4, 2.7L L4 or a 3.4L V6 engine. PLS Measure RADIATOR SIZE ONLY FOR 18 5/8" H Core Height. Radiator SPECIFICATIONS： Row Count: 3 Rows Overall Height: 23 1/2" Overall Width: 28 1/8" Core Height: 18 5/8" Core Width: 25 1/8" Inlet Diameter: 1 3/8 " Outlet Diameter: 1 3/8 " Transmission Oil Cooler Fitting Type: M14-1.5 Fan Specification: Diameter : 16'' (Blade to Blade) Number of Blades: 10 pcs Maximum Fan CFM（Cubic Feet per Minute）: 2000±200 cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2,250 rpm Max. Amp Draw: 15amp Voltage: DC 12V Wattage: 120W Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 185'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.

• Aluminum Radiator: All-aluminum design with durable TIG-welded construction (AA5052 aircraft aluminum) ;High performance racing design, improves cooling by 35 -45% Temp.
• For 1995-2004 Toyota Tacoma 2.4L 2.7L L4 3.4L V6; OEM Style Brass Petcock Drain.; CNC machined filler neck and cap
• Light Weight Direct Bolt-On OEM Fitment or Replacement, Stronger & Higher Capacity for Coolant than Stock One
• High Quality: Cubauto 3 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• 1-Year Warranty for Every Item. Do not hesitate to get one!
