4 Row Aluminum Radiator Shroud Fan Relay for 1988-1999 Chevy GMC C1500 C2500 C3500 K1500 K2500 K3500 pickup 28" Core 89 90 91 92 93 94 95 96 97 98 Radiators
4.5 (98 items)
Limited Time Sale$233.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 229639409 | Release Date | 2026/05/31 | List Price | $155.60 | Model Number | 229639409 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

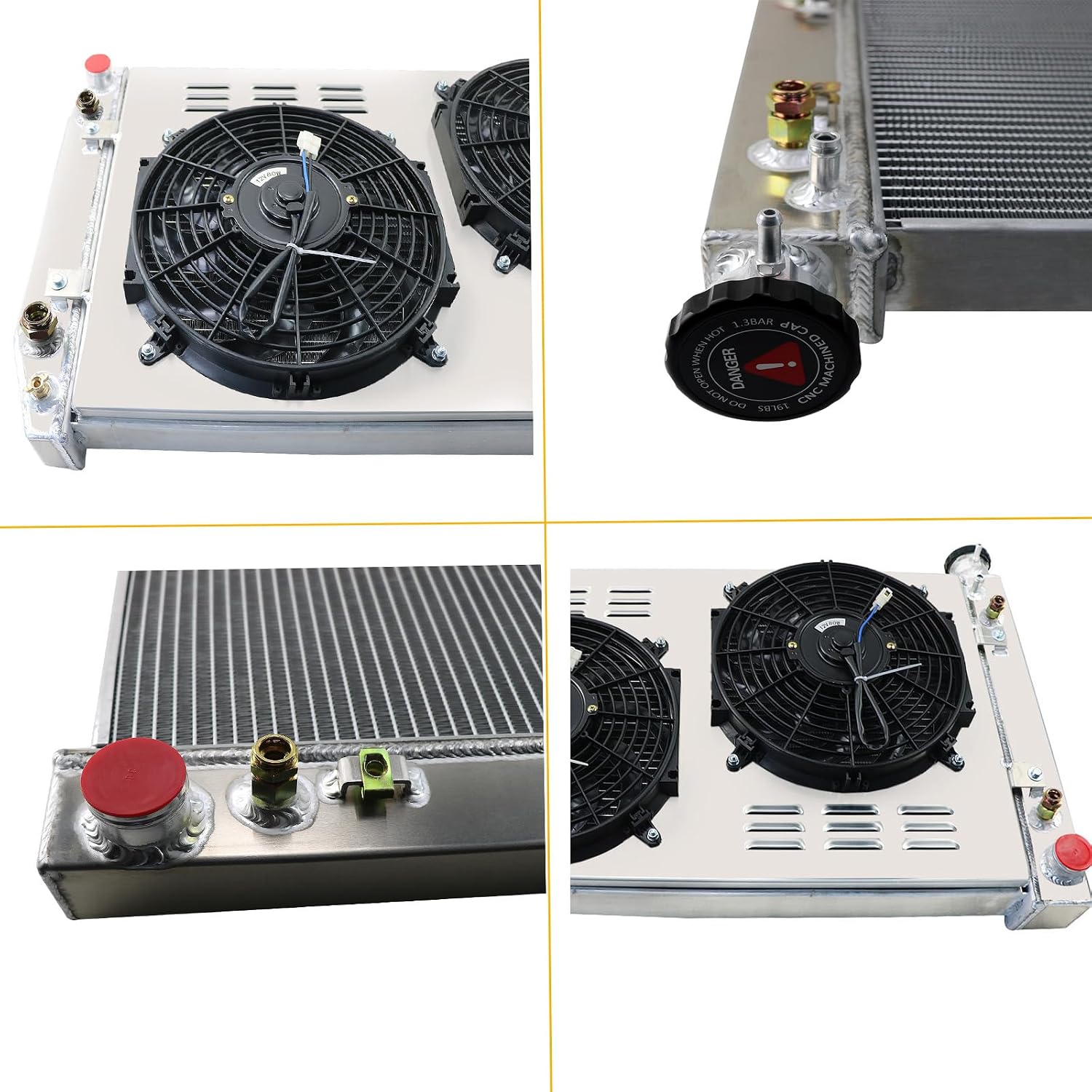

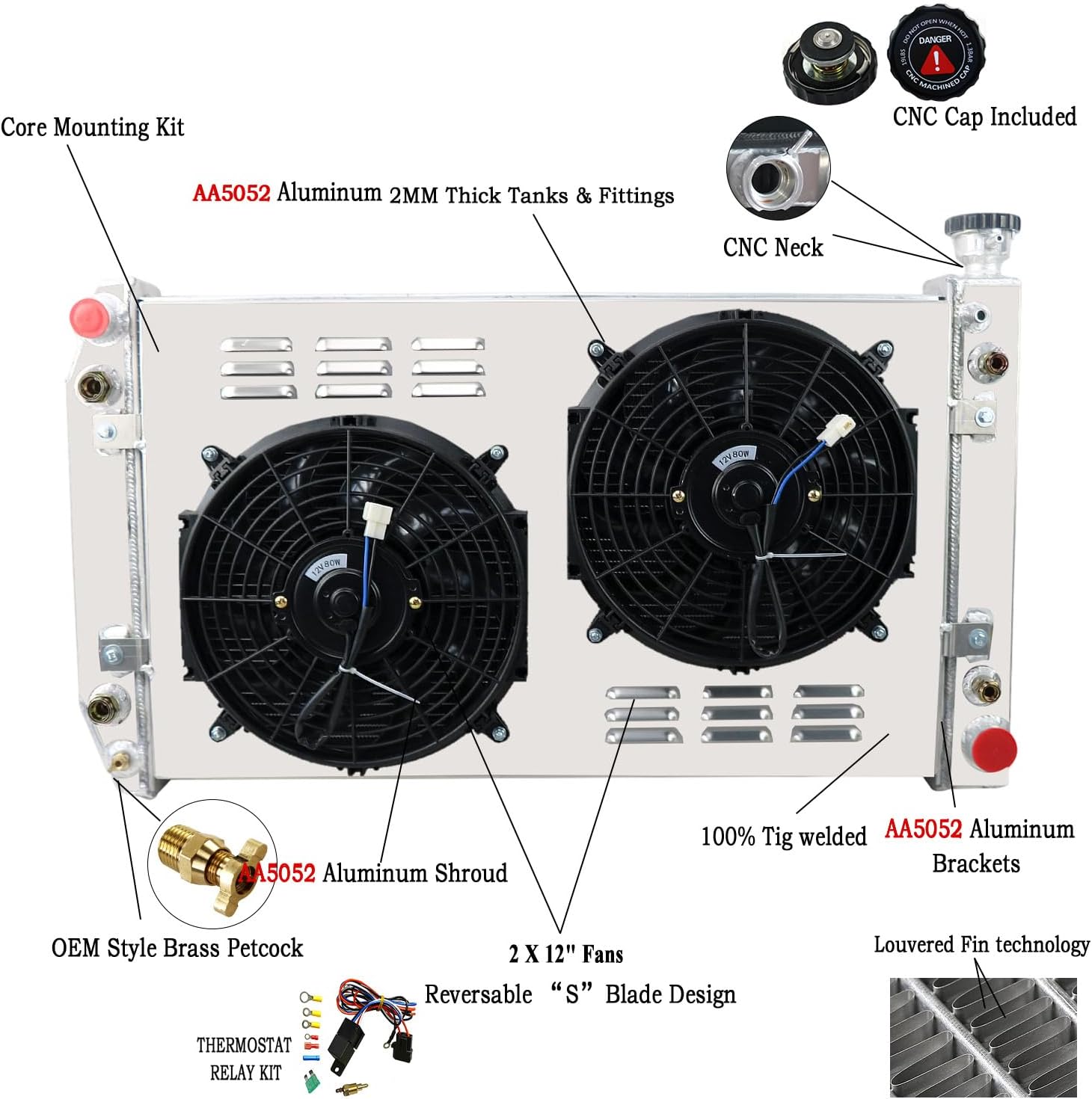

Fitment: For Chevy P30 / GMC P3500 4.3L V6 96-97 For Chevy/GMC Suburban 5.7L V8 92-95 For Chevy/GMC C/K Pick Up 5.0 / 5.7L V8 88-95 For Chevy/GMC C/K Pick Up 4.3L V6 94-95 For Chevy R/V Series 5.7L V8 89-91 For Chevy Blazer - Full Size 5.7L V8 94 Pakage Include: 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mounting kits) 1 X Thermostat Relay Kit FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Radiator Details: 4-Row of tubes Core Racing Design Material: Full Aluminum ,T-5057 Aircraft Grade Aluminum Features: 100% Leak Tested,Crossflow Radiator Placement on Vehicle: Engine Compartment, front Crafts : 100% TIG welded Fitment Type: Performance/Custom Mounting Style: Bolt-On Delivery: Local Delivery Part Number: 1689,1804,20348,20349,20559,20594,20674,3058768,3058773 52467208, 52467210, 52469431, 52469432, 52469466, 52491623, 622,622 CU622 KKS622 SBR622 CC622 TYC622 DPI622 RAD622 AE622 EC622 SPTCU622 RA622 RK622 SC622 TYC622 1804,2383
- Core Size : 17 1/4" Height x 28 1/4" Width ；Overall Size: 20 1/4" Height x 33 7/8" Width ；Inlet Diameter: 1 5/16" On Driver Side ；Outlet Diameter: 1 9/16" On Passenger Side
- Left oil cooler : M20*1.5 ; Right oil cooler : 1/2-20UNF ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain.
- Features: 100% Leak Tested, Durability Tested, No Drilling or Modifications Needed for Installation ; One-year warranty. For any issues, please contact us immediately. Enignelooc will resolve the matter for you.
- High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
- Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.
| UPC | 753684773059 |
|---|---|
| ASIN | B09MQK5VB6 |
| Model | 4 Row Radiator Shroud Fan Relay |
| Voltage | 12 Volts |
| Brand Name | RadRace |
| Unit Count | 1.0 Count |
| Part Number | MotorPartsZone525 |
| Manufacturer | MotorPartsZone |
| Material Type | Aluminum |
| Cooling Method | Air |
| Air Flow Capacity | 2300 Cubic Feet Per Minute |
| Compatible Devices | Radiator |
| Power Connector Type | 3-Pin |
| Maximum Rotational Speed | 2250 RPM |
| Item Dimensions L x W x H | 20.45"L x 4.15"W x 33.92"H |
