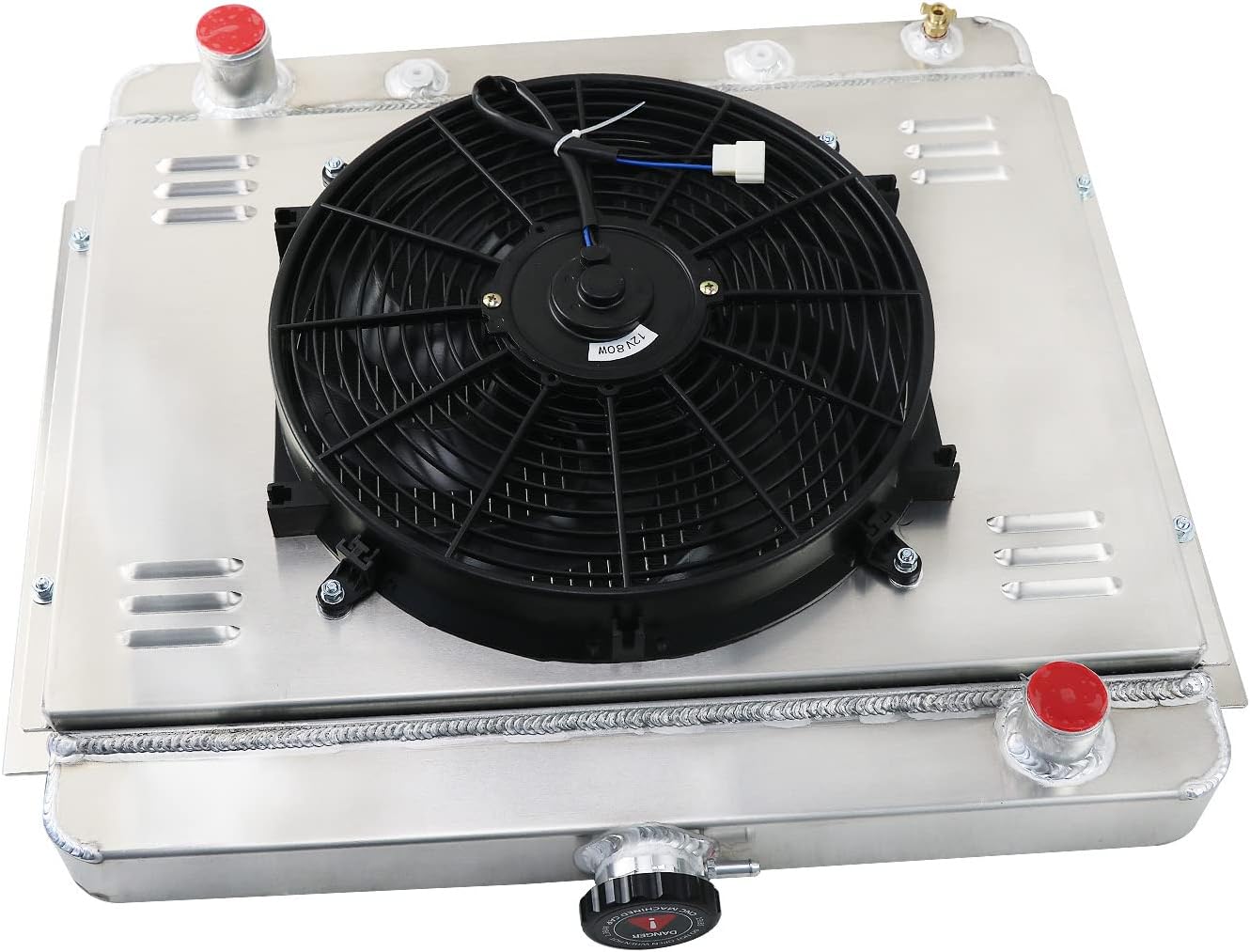

CC6267 Aluminum Radiator for 1962-1967 Chevy II Nova Sedan/Wagon/Hardtop, 3 Row Radiators with Electric Fan Shroud Thermostat Kit 1963 1964 1965 1966

Compatible with: 1962-1967 Chevy II Nova, 4.6L (V8) 1962-1967 Chevy II Nova, 5.3L (V8) 1962-1967 Chevy II Nova 1962-1967 Chevy II Nova SS, 4.6L (V8) 1962-1967 Chevy II Nova SS, 5.4L (V8) 1962-1967 Chevy II Nova SS 1962-1967 Chevy II Nova, 4.6L (V8) 1962-1967 Chevy II Nova, 5.3L (V8) 1962-1967 Chevy II Nova Specifications: 3 ROW RADIATOR SIZE Core Material: AA5052 Aluminum Core Dimensions: 22.36" H x 16.14" W Overall Dimensions: 25.78" H x 22.45" W Upper inlet: 1-1/2" located Driver Side Lower outlet: 1-3/4" located Passenger Side Transmission Oil Cooler: ￠32×215×1/8-27NPT（T） OEM Style Brass Petcoke CNC machined filler neck and 1.3BAR Cap FAN DETAILS: Maximum Fan CFM: 2200±200 FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 14"Fan (Includes mounting kits) 1 X Thermostat Relay Kit

• For 1962-1967 Chevy II Nova SS V8 4.6 5.3L
• Core Size: 22.36" x 15.16" ; Overall size: 25.78" x 21.18" ; all aluminum 3 row core radiator (1.73'' core thickness)
• Upper inlet: 1-1/2" located Driver Side; Lower outlet: 1-3/4" located Passenger Side
• Transmission Oil Cooler: ￠26×215×1/8-27NPT（T）
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
