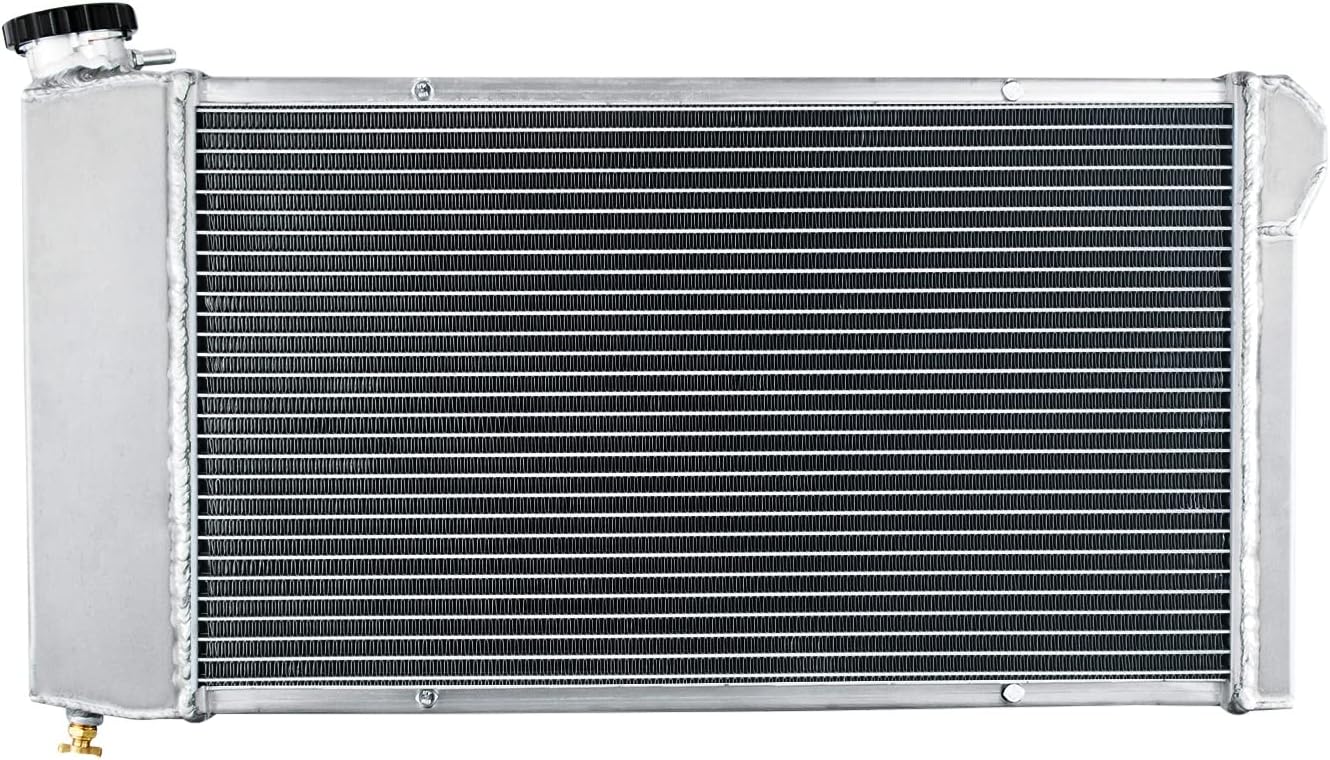

4-Row Aluminum Radiator+Shroud Fan For 1971-1977 1972 1973 1974 1975 1976 Chevy Vega Pontiac Astre L4 Radiators 71 72 73 74 75 76 77

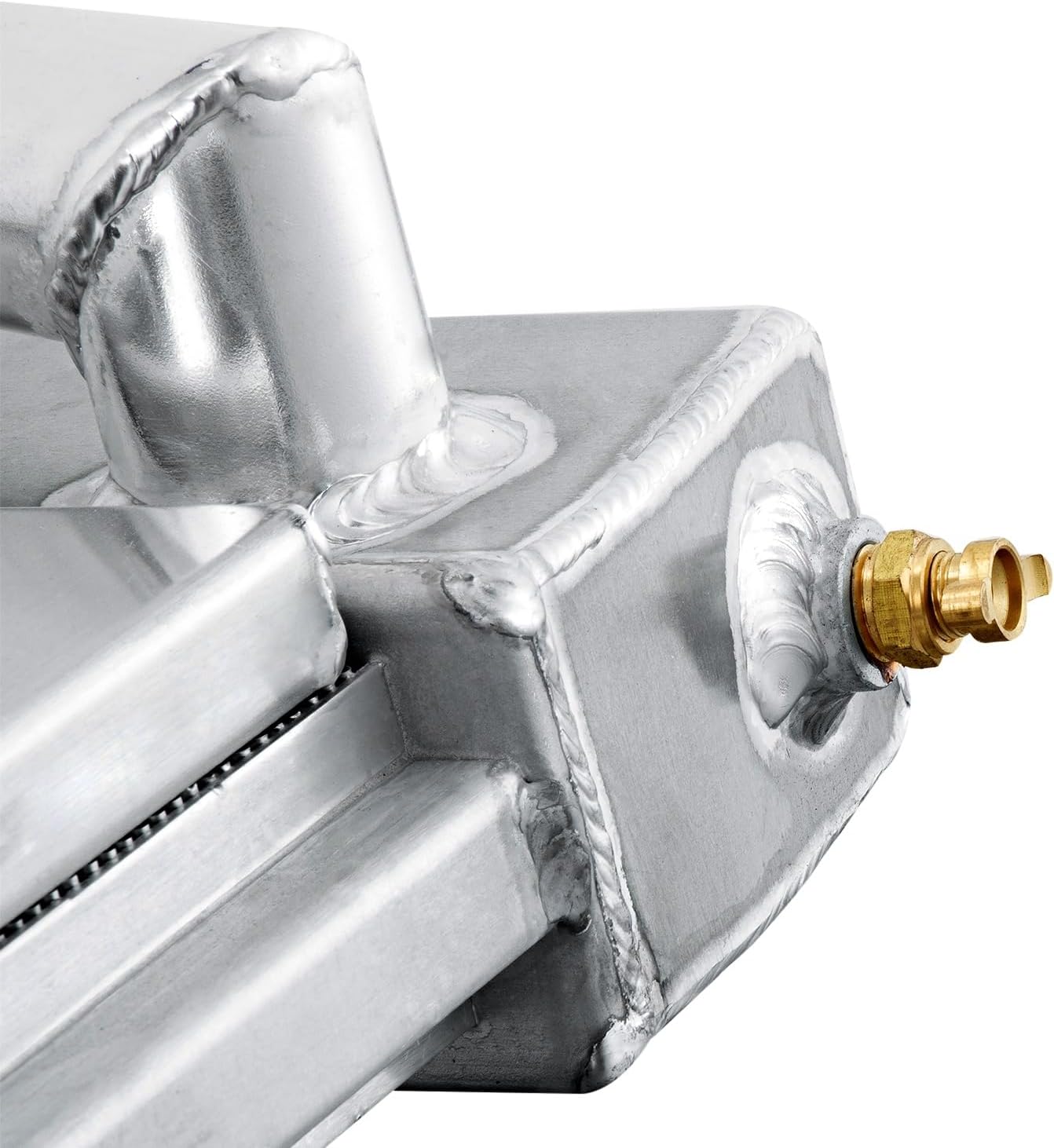

Compatible with: For 1971-1977 Chevy Vega 2.0L 2.3L For 1975-1976 Pontiac Astre 2.3L This radiator is designed for either a 2.0L(122ci) L4 or a 2.3L(140ci) L4 engine Radiator Details: Type: 4 Core Core Thickness: 2.44" Core/ Tank Material: All Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain Without Transmission Oil Cooler Delivery: Local Delivery Fitment Type: Direct Replacement Style: Crossflow Performance: Up to 35%-45% Cooling FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe included. Probe typically threads into radiator, water outlet or manifold. Thermostat Relay Kit Instructions： RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12"Fan (Includes mounting kits) 1 X Thermostat Relay Kit

• Direct fit for 1971-1977 Chevy Vega /75-76 Pontiac Astre 2.3L L4
• Core size: 20.86"H x 11.33"W x 2.44"T; Overall size: 26.77"L x 14.56"W x 4.72"T; Inlet/ outlet: 1.25"/ 1.5"（Measurement standard: the direction of the core strip is high）
• AA5052 Aluminum Radiator is at least 35%-45% more efficient than stock ones
• Direct OE replacement with drop-in precise fitment and easy installation
• 1 Year Warranty! US Local Delivery! Professional Installer is Highly Recommended; No Instruction Included!Any doubts and quality issues pls contact us first!
