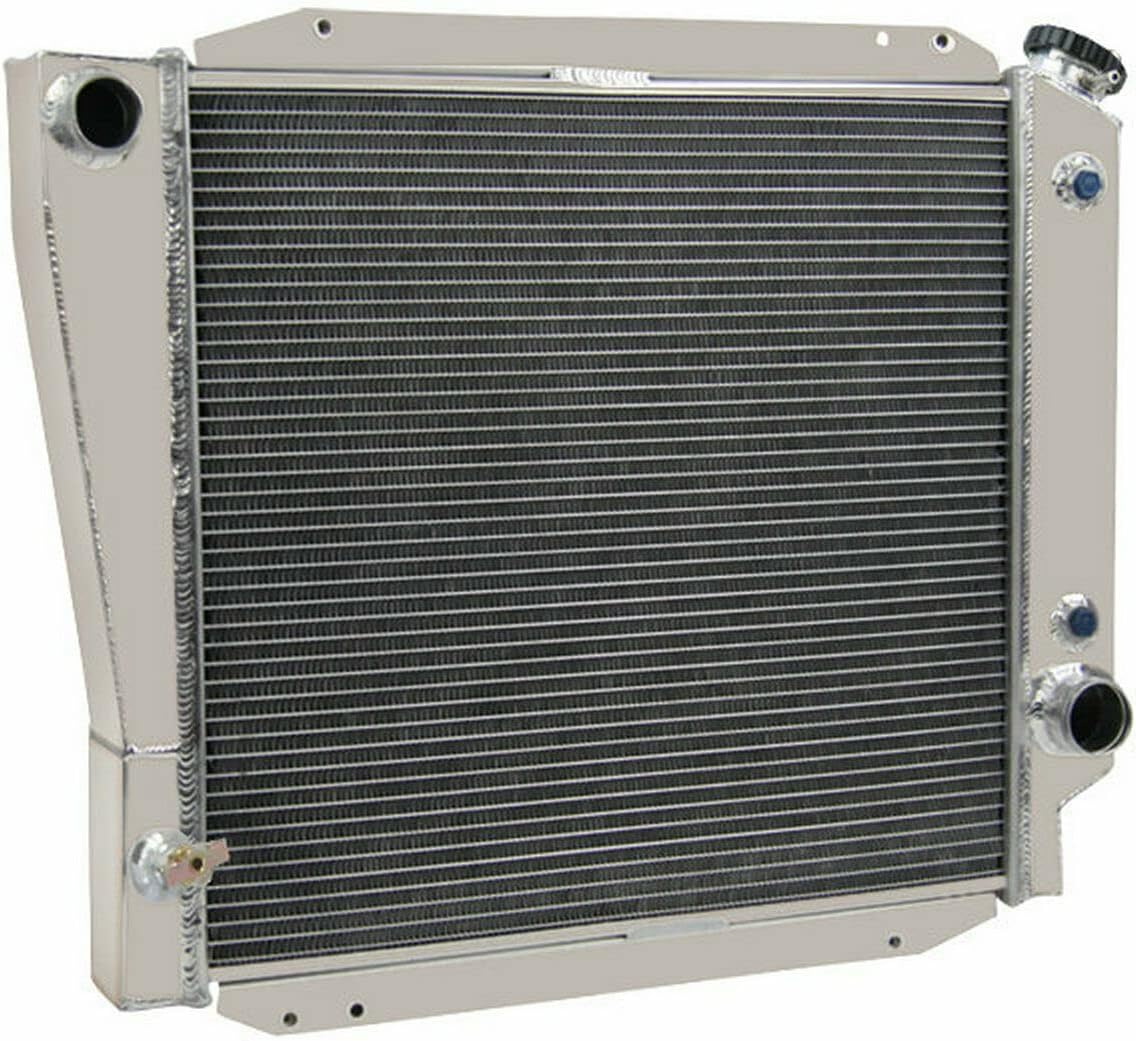

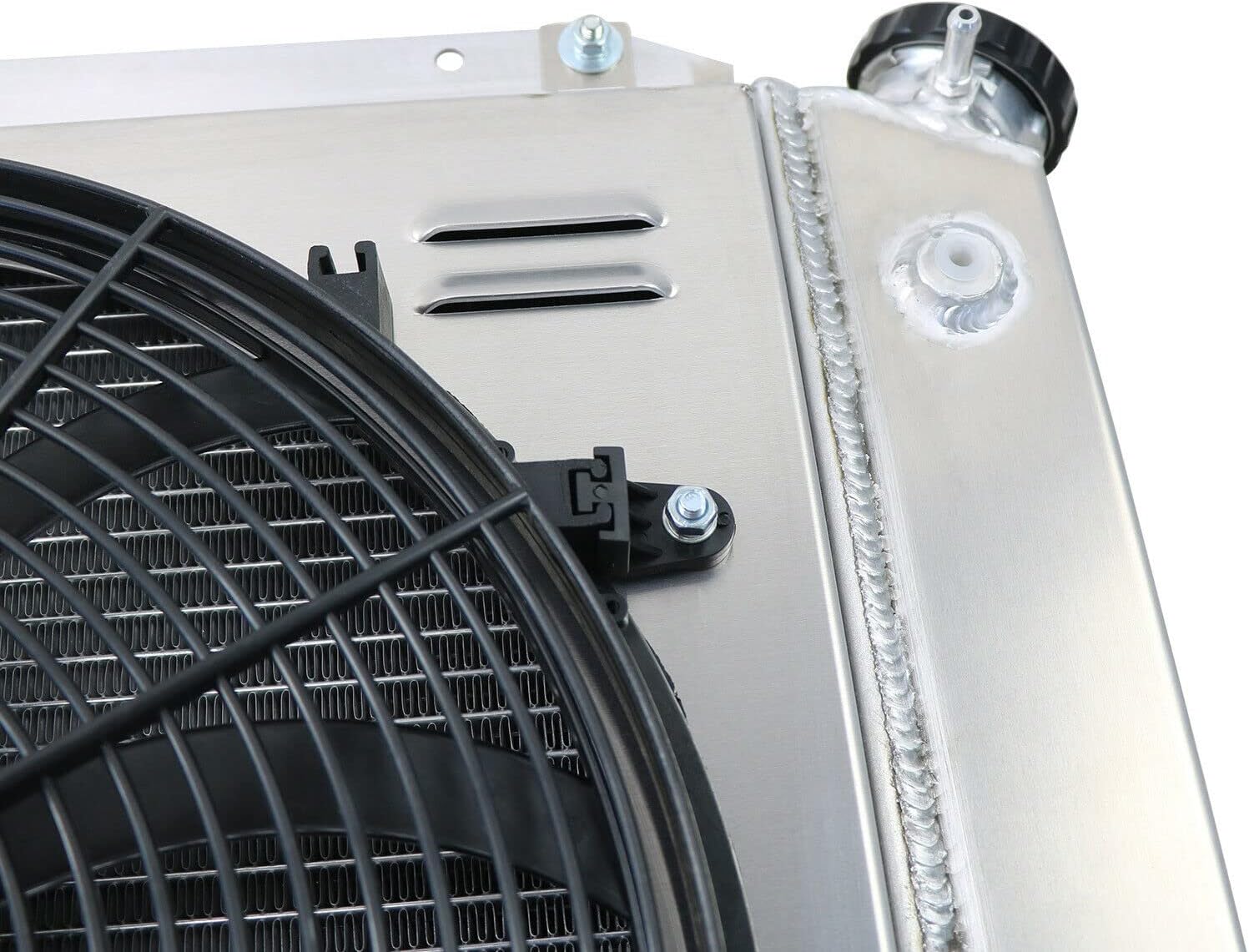

4 ROW ALUMINUM RADIATORS FOR 1966-1977 FORD BRONCO 302/ WAGON/ROADSTER 5.0 V8 AT/MT, RADIATOR WITH ELECTRIC FAN SHROUD THERMOSTAT KIT

Radiator Details: Type: 4 Core Radiator+Shroud+16"Fan+Thermostat Kits Core Thickness: 2 4/9" Color: Silver Core/ Tank Material: All Aluminum Surface Finish: Aircraft Grade Raw Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain Delivery: Local Delivery Fitment Type: Direct Replacement Transmission Oil Cooler: Yes Transmission Cooler: 1/8-27 NPT Transmission: Automatic and Manual Compatible with: Ford Bronco Base L6 3.3L 74 Ford Bronco Base V8 5.0L 68-74 Ford Bronco Base -- -L 73 Ford Bronco Base L6 2.8L 69-72 Ford Bronco Base V8 4.7L 66-68 Ford Bronco Custom V8 5.0L 75-77 Ford Bronco Northland V8 5.0L 75 Ford Bronco Ranger V8 5.0L 75 Ford Bronco Roadster L6 2.8L 69 Ford Bronco Roadster V8 5.0L 68-69 Ford Bronco Roadster V8 4.7L 68 Ford Bronco Sport V8 5.0L 75-77 Ford Bronco Wagon L6 3.3L 73 Ford Bronco Wagon V8 5.0L 68-73 Ford Bronco Wagon L6 2.8L 69-72 Ford Bronco Wagon V8 4.7L 68 (Fits Manual Transmission Models with 5.0L 302Cu. In.V8 Engines Only) FAN SPEC: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans and pull air in through radiator.

• OEM replacement radiator for 1966-1977 Ford Bronco 289 302 5.0L V8 AT/MT (Fits Models with 5.0L 302Cu. In.V8 Engines Only)
• Core size: 19 2/9"H x 18 3/7"W x 2 4/9"T; Overall size: 25 3/5"H x 20 7/8"W; Inlet size:1 1/2"; Outlet size: 1 7/9"（Measurement standard: the direction of the core strip is high）
• Oil cooler specifications: ￠26×255×1/8-27NPT（T）
• Carefully crafted to exceptional OE standards for precise fit（No installation instructions）
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
