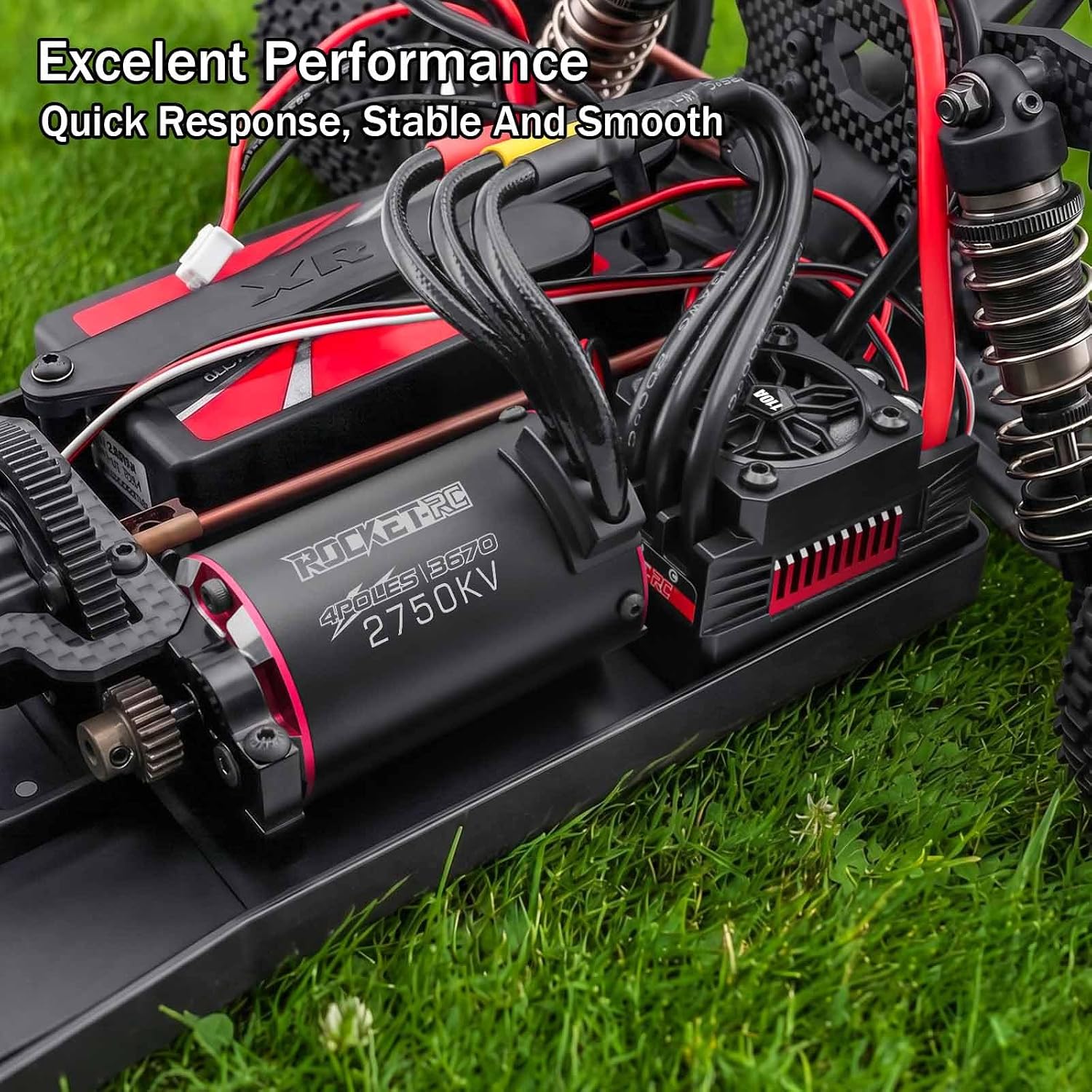

Surpass Hobby 3670 & 110A ESC Sensored Brushless Motor and ESC Combo for RC Car 2-3S Lipo IP67 Water Proof Applicable to 1/10 Short Course,Trucks,Monster(2750kv)

Surpass Hobby Supersonic 3670 2750kv brushless motor with 110A ESC combo setBuilt in Temperature Sensor port motor:✔High Purity CopperWindings Maximizes Efficiency✔High RPM ABEC5 Oversized Bearings✔Precision balanced rotor, removable/replaceable rotor✔Specially designed for 1/10 rc car,a good choice for your rc car.Water-proof ESC:✔Specially designed for RC car, water-proof and dust-proof for all-weather races.✔Excellent start-up, acceleration and linearity features.✔The strong resistant current capability, excellent heat dissipation.✔Multiple protection features, widely compatible with for 1/10 RC carSpecification:Item Type: 3670 2750KV Brushless Motor Wattage: 1750W Max Voltage: 16.5V Maximum Current: 106AMaximum Speed: 50000 No Load Current: 3.8ANumber of Motor Poles: 4Internal Resistance (Ω): 0.0063Motor Length: Approx. 50mm / 2.0in (Without Shaft)Motor Diameter: Approx. 36mm / 1.4inShaft Diameter: Approx. 5mm Shaft Length: Approx. 17mmGold Plated Plug: Approx. 4.0mm / 0.16in110A ESC:Continuous Current: 110AInstantaneous Current: 520AMotor Type: Non Inductive Brushless MotorInternal Resistance: 0.0004ohmBattery:2-4S Lithium Battery / 4-12S NiMHBEC Output: 6.0V/7.4/8.4V 6A (Switching Mode)Product Size: Approx. 50x35x34mm / 2.0x1.38x1.34inPlug Type: XT60 to T Plug ConnectorApplication: for 1/10 Remote Control Car (eg: for Tamiya / for Traxxas)Instuctions1. Connect BEC wires with the receiver2. Connect motor wires with ESC3. Turn on the transmitter4. Connect battery pack with ESC then switch on the ESC.5. When the connection of motor and battery is finished, the motor emits"Beep-Beep"tone.6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep"tone.7. The ESC is workable.8. please read product manual(ESC)Package List:1 x 3660 Brushless Motor1 x 110A ESC1 x XT60 to T Plug Connector2 x ManualNote:1. Due to manual measurement, please allow an error of 13mm. Thanks!2. The monitor calibration is inconsistent, the color of the item shown in the photo may be slightly different from the actual object

• Suitable for All Weather: Complete 3670 2750KV sensorless brushless motor and 110A brushless ESC, waterproof and dustproof for all weather races. You can use them together or separately according to your needs. Please note that this product works best with 2-3S Lipo.
• Basic Motor & ESC Combo Fits 2-3S Battery: The smaller the KV value,the greater the intensity and the slower the speed, as this 2750KV brushless motor,suitable for heavy cars,such as off-road vehicles, and the 90A ESC is best to use 2-3S battery.
• Multiple Protection: Our this 2750KV brushless motor and 110A ESC set with multiple protection,such as low voltage cut-off protection for lithium or nickel battery,over-heat protection, throttle signal loss protection and motor blocked protection
• Built in Temperature sensor port Motor: The motor has built in temperature unit and ports,which can realize the temperature overheat that protection function by matching with the esc
• Professional: 3670 2750KV Brushless motor designed for 1/10 RC car suck as on-road car /tourning car, cool black appearance; high quality: CNC machined heat sink, excellent heat dissipation; profession: with excellent start-up,acceleration and linearity features, strong resistant current capability
