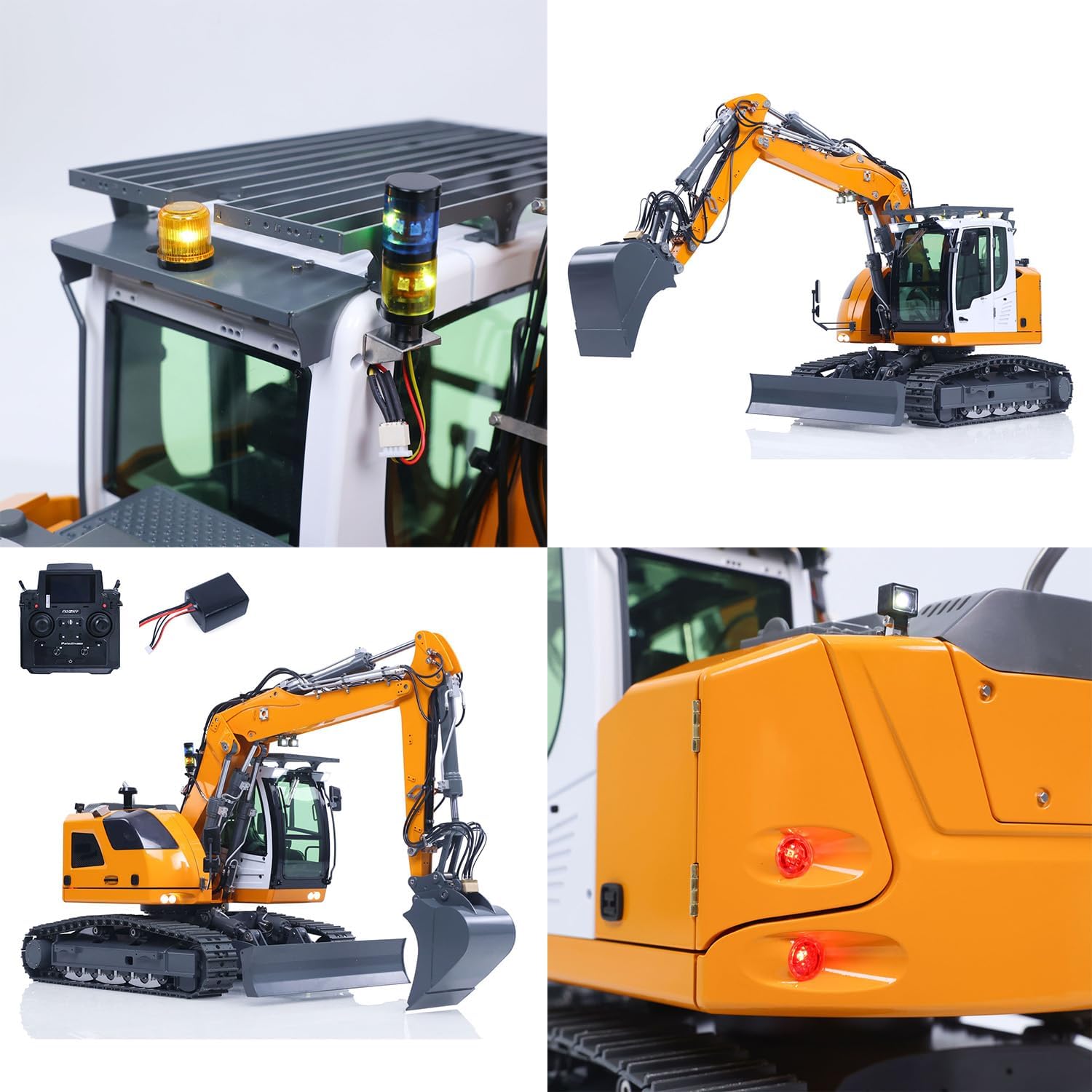

TOUCAN RC HOBBY Metal 1/14 RC Hydraulic Excavator LR914 PRO MAX Remote Control Digger Construction Car 8ways Valve PL18EV LITE Radio Battery

#Warning: This rc excavator is not equipped with a hydraulic radiator, only a bottom plate fan and an ESC fan. Overheating of hydraulic oil may occur! #Specification: Item Condition: New, Painted and Assembled Material: Metal, Plastic ( the exception of the cabin glass and some decorative parts made of plastic) Scale: 1/14 Size: 547.9*162.9*234.6 Net Weight: About 9.2KG Hydraulic Valve: 8-ways #The Package Includes: 1/14 RC Hydraulic Excavator Model LR914 PRO MAX ESC Motor Servo Light System Sound System Hydraulic System with 8-ways Reversing Valve Integrated Pump and Oil Tank Hydraulic Quick Release Coupler Rotating Warning Lights Spotlights Cabin Roof Guard Rail Cabin Rear Roof Guard FlySky PL18EV LITE Remote Controller and Receiver 3S Battery #The Package Does Not Include: Charger Hydraulic Oil #Static Parameters - Body width (mm): 194 - Ground clearance at upper edge of tracks (mm): 69.3 - Ground clearance at top of body (excluding exhaust pipe) (mm): 184.6 - Ground clearance at top of cab (excluding protective net) (mm): 221.3 - Ground clearance of counterweight (mm): 80.9 - Wheelbase (mm): 239.1 - Standard track width (mm): 35 - Distance between tracks (mm): 163 - Width of the bulldozer blade (mm): 198 - Maximum width of the chassis (mm): 203.2 #Dynamic Parameters - Maximum ground clearance with the bulldozer blade down (mm): 15.2 - Maximum ground clearance with the bulldozer blade up (mm): 52.6 - Rotation angle (°): 360 (infinite rotation) - Torque of worktable rotation motor (kg): 25 - Rotation speed of the worktable (r/min): 9.5 - Single cylinder thrust (kg): 15 - Maximum speed of drive wheels (r/min): 30 - Drive wheel reduction ratio: 1/256 - Maximum pressure of hydraulic system (MPa): 4 - Rated pressure of hydraulic system (MPa): 2.5

• Body Construction: The main body predominantly uses CNC and stainless steel sheet metal processing, with certain few decorative parts using ABS molds.
• The hydraulic system comes with an 8-ways hydraulic valve, along with a hydraulic quick coupler and a female quick connector for enhanced versatility.
• Upgradability: This model offers various upgrade options such as GPS, rubber track pads, and multiple attachments such as grippers, rippers, etc. to enhance playability.
• Innovative Hydraulic Proportional Valve: First to use newly developed 1/14 mechanical model proportional hydraulic directional valve, with precision reaching the micron level, which makes the hydraulic functions of the excavator much more delicate, smooth and realistic.
• Integrated Hydraulic Pump Station: The hydraulic pump station integrates an oil tank, pressure regulator, pressure gauge, oil fill port, balance valve, oil discharge port, oil level indicator, bringing incomparable stability, and thus, doesn’t leak oil like other machines. The integrated hydraulic station block makes the appearance much neater and more convenient for subsequent maintenance.
