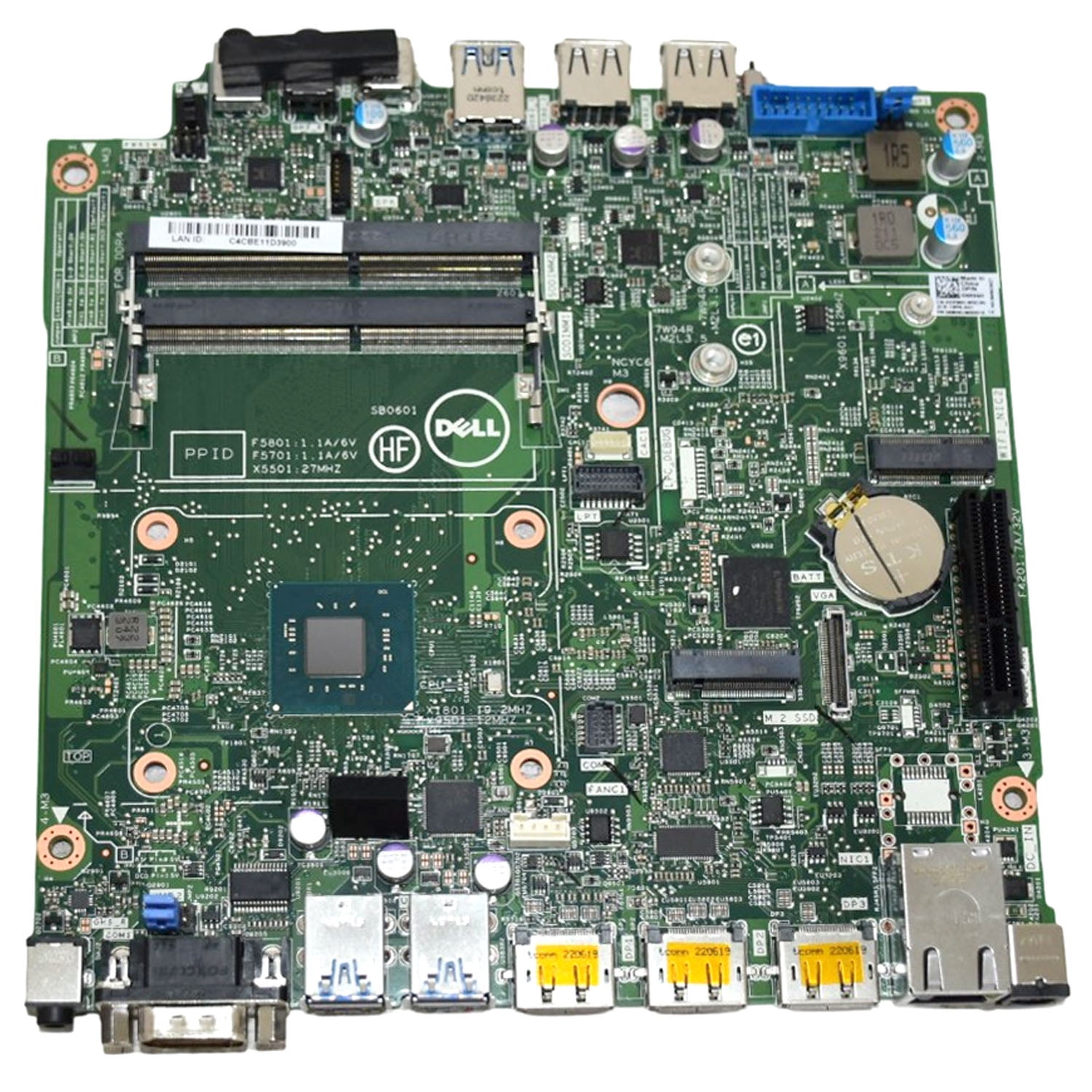

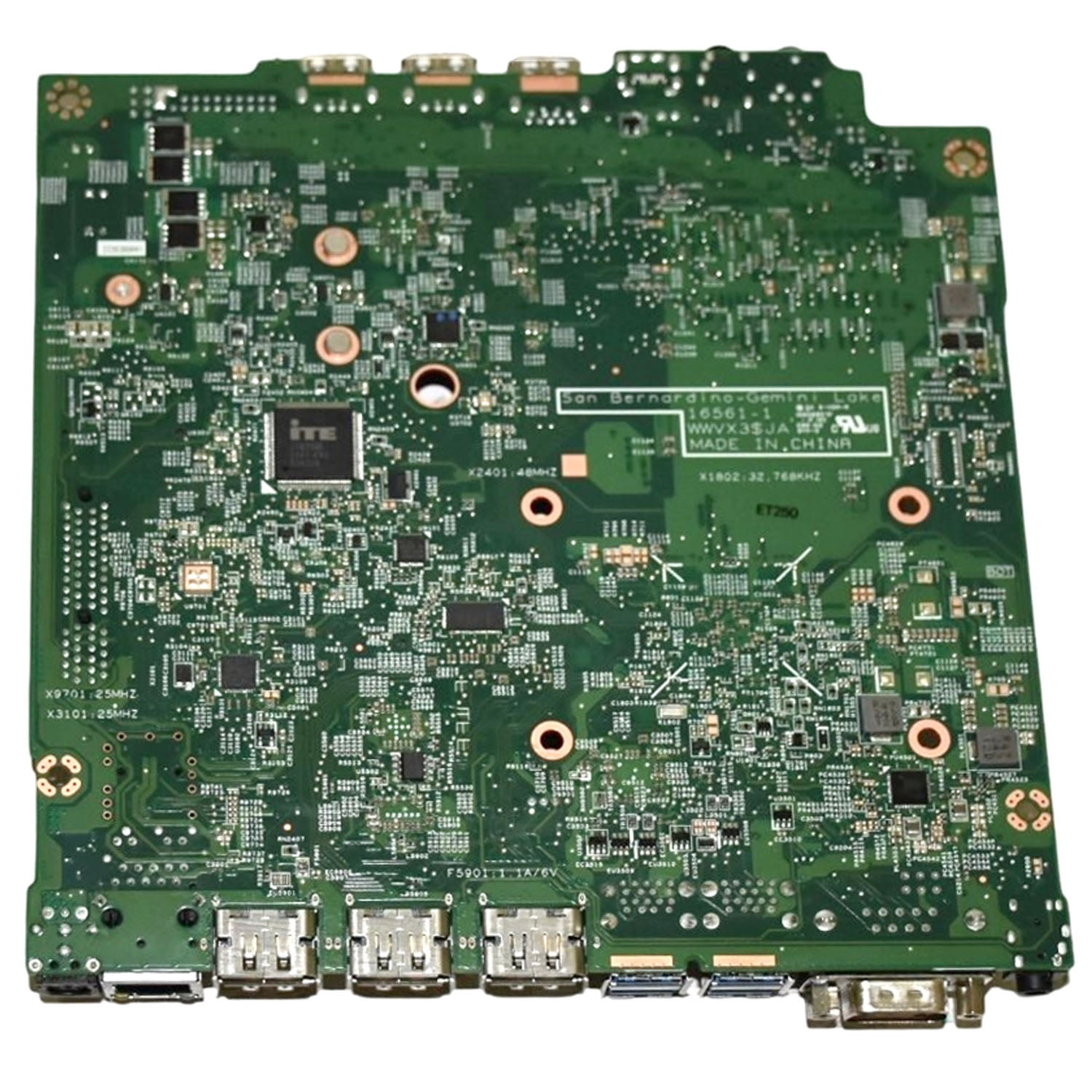

Pre-Owned Dell OptiPlex 5070 SFF Motherboard Intel Q370 | Dual DDR4 Slots XR96H

Dell OptiPlex 5070 SFF Motherboard (XR96H) features the Intel Q370 chipset, providing support for Intel Core processors. This motherboard includes dual DDR4 memory slots, supporting up to 64GB of RAM. Designed for small form factor (SFF) systems, it offers multiple connectivity options, including PCIe slots, SATA ports, and integrated graphics. Ideal for business and enterprise use, it ensures compatibility with the compact Dell OptiPlex 5070 series.

• Brand: Dell

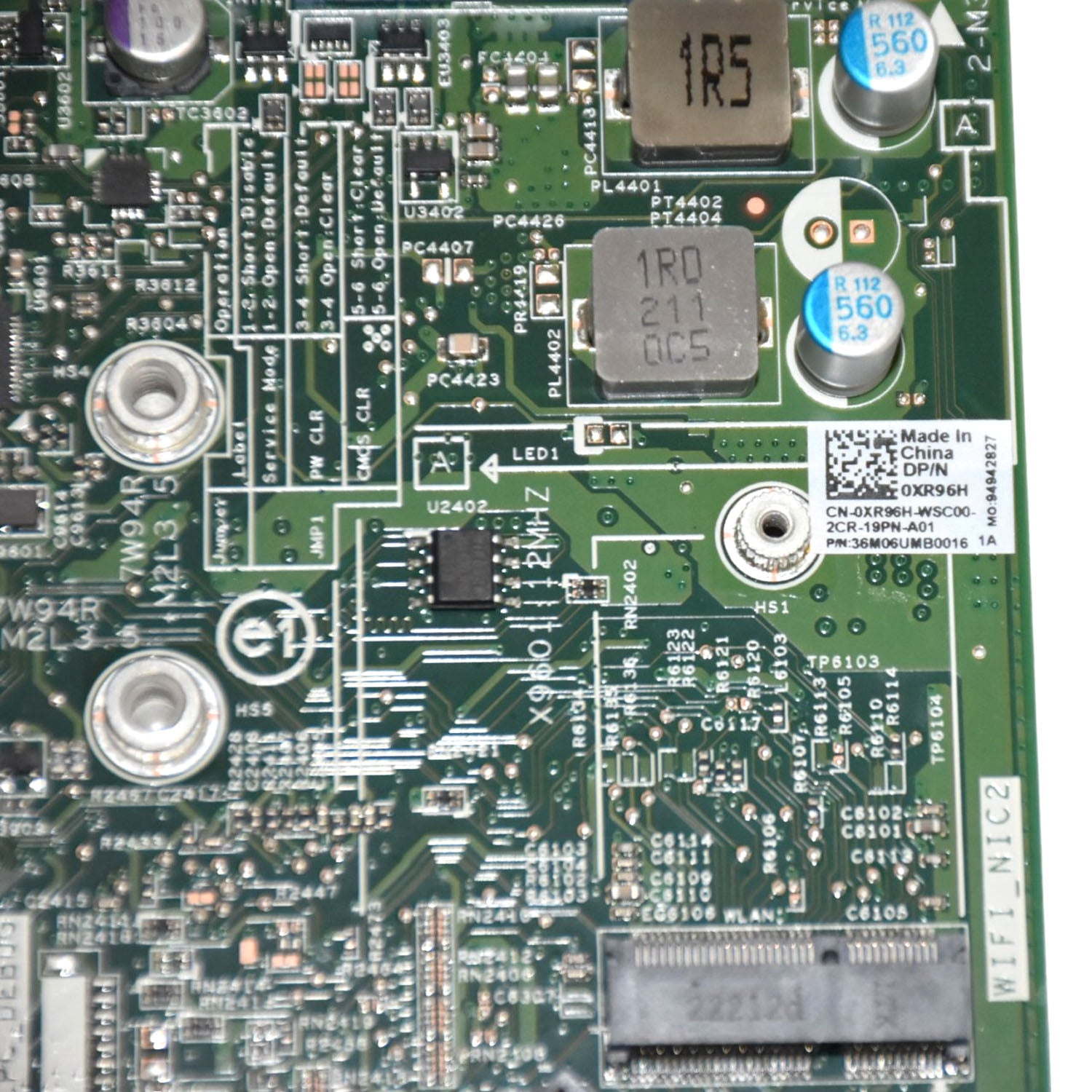

• Part Number: XR96H
• MPN: XR96H, 0XR96H, CN-0XR96H
• Type: Desktop Motherboard
• Compatible Brand: For Dell
• Compatible Product Line: For Dell OptiPlex
• Compatible Model: For Dell OptiPlex 5070
• Chipset: Intel Q370 Express Chipset.
• CPU Socket: LGA 1151 socket
• supporting:
• 8th Generation Intel Core processors (e.g., i3, i5, i7)
• 9th Generation Intel Core processors.
• Intel Pentium and Celeron processors are also supported.
• Memory Type: DDR4 SDRAM.
• Memory Channels: Dual-channel.
• Memory Slots: 2 x DIMM slots.
• Maximum Memory: 64 GB (2 x 32 GB DIMMs).
• Supported Speed: DDR4-2666 MHz.
• SATA Ports: 3 x SATA III ports (6.0 Gb/s) for connecting SSDs or HDDs.
• M.2 Slot: 1 x M.2 2280 slot, supporting NVMe or SATA SSD (optional, depending on configuration).
• May also include an additional M.2 slot for Wi-Fi/Bluetooth module.
• 1 x PCIe x16 slot (for low-profile graphics cards).
• 1 x PCIe x1 slot (for other expansion cards like network adapters or sound cards).
• Supports integrated Intel UHD Graphics (determined by the CPU model, such as Intel UHD 630 for Core i7)
• 4 x USB 3.1 Gen 1 Type-A ports.
• 1 x USB 3.1 Gen 2 Type-C port (optional, depending on configuration).
• 4 x USB 3.1 Gen 1 Type-A ports.
• 2 x USB 2.0 ports.
• Ethernet: 1 x Gigabit Ethernet (RJ-45).
• Audio: Integrated HD Audio with
• Front: 1 x Headphone/Microphone combo jack.
• Rear: Line-in, Line-out, and Microphone jacks.
• Video Ports: (integrated depending on configuration):
• 2 x DisplayPort 1.2.
• 1 x Optional VGA (if configured with optional expansion card).
• Integrated Audio: Realtek ALC3234 High Definition Audio (Codec).
• Proprietary Dell power connectors, matching the Optiplex SFF power supply.
