MINISFORUM MS-R1 ARM Mini Workstation CP8180 Processor(12C/12T) 64GB LPDDR5(ECC Support) Without SSD Mini PC, HDMI/2x USB-C Triple Display, 2X 10G LAN Port, 7X USB Port, WiFi6E, BT5.3 Micro PC

<p>The MINISFORUM MS-A2 Mini Workstation is equipped with ARM CIX CP8180 processor, delivering near-x86 performance and scalability.12 cores / 12 threads at 2.6GHz frequency balanced multi-tasking and energy efficiency. </p> <br><p><b>Specifications</b></p><br> <ul><li><b>CPU:</b>ARM CIX CP8180 (12C/12T, 2.6 GHz) </li><li><b>Processor Graphics:</b>Arm Immortalis-G720 MC10 </li><li><b>Installed RAM:</b>64GB LPDDR5 </li><li><b>Storage:</b>1×M.2 2280/22110 NVME SSD Slot (up to 8TB)(PCle4.0x4) </li><li><b>Wireless Connectivity:</b> Support WIFI 6E, Bluetooth 5.3 </li><li><b>Video Output:</b>1x HDMI2.0 (Up to 4K@60Hz) </li><li>2x Type-C(Alt DP 1.4)(Up to 4K@120Hz)</li></ul> <p><b>Ports and Buttons:</b></p> <ul><li>2x 10G LAN(RJ45) </li><li>4x USB Type A(USB2.0) </li><li>3x USB Type A(USB3.2 Gen2) </li><li>1x PCIEx16(PCIE4.0x8) </li><li>1x 3.5mm Comble Audio Jack 4 in 1 </li><li>1x 40PIN GPIO </li><li>1x BIOS FLASH PIN &amp; UART1 PIN </li><li>1x Power Button</li></ul> <p><b>Packing List</b></p> <ul><li>1* MS-R1 Mini Workstation </li><li>1* HDMI Cable </li><li>1*US Power Adapter </li><li>1*Manual</li><li></li></ul>

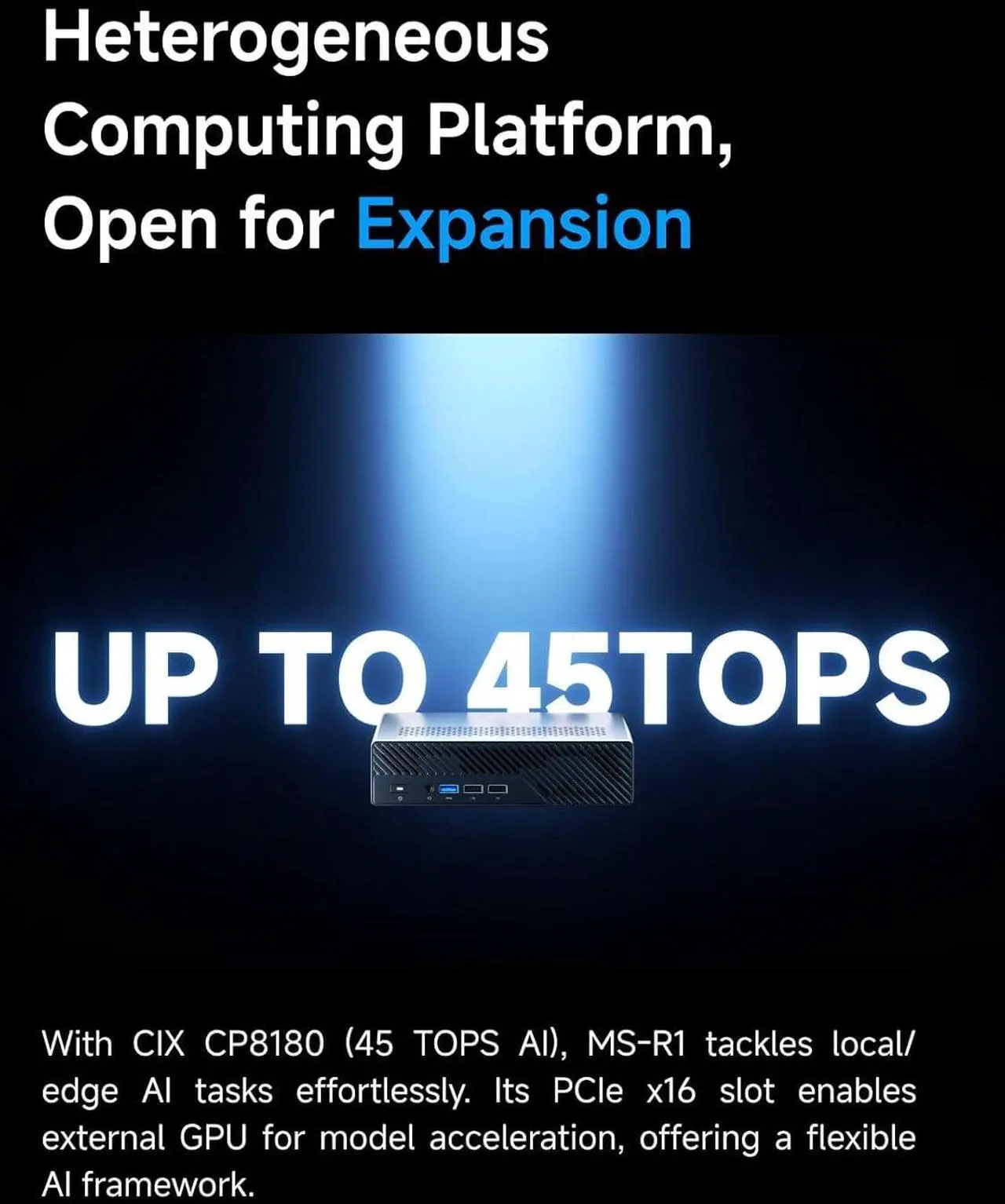

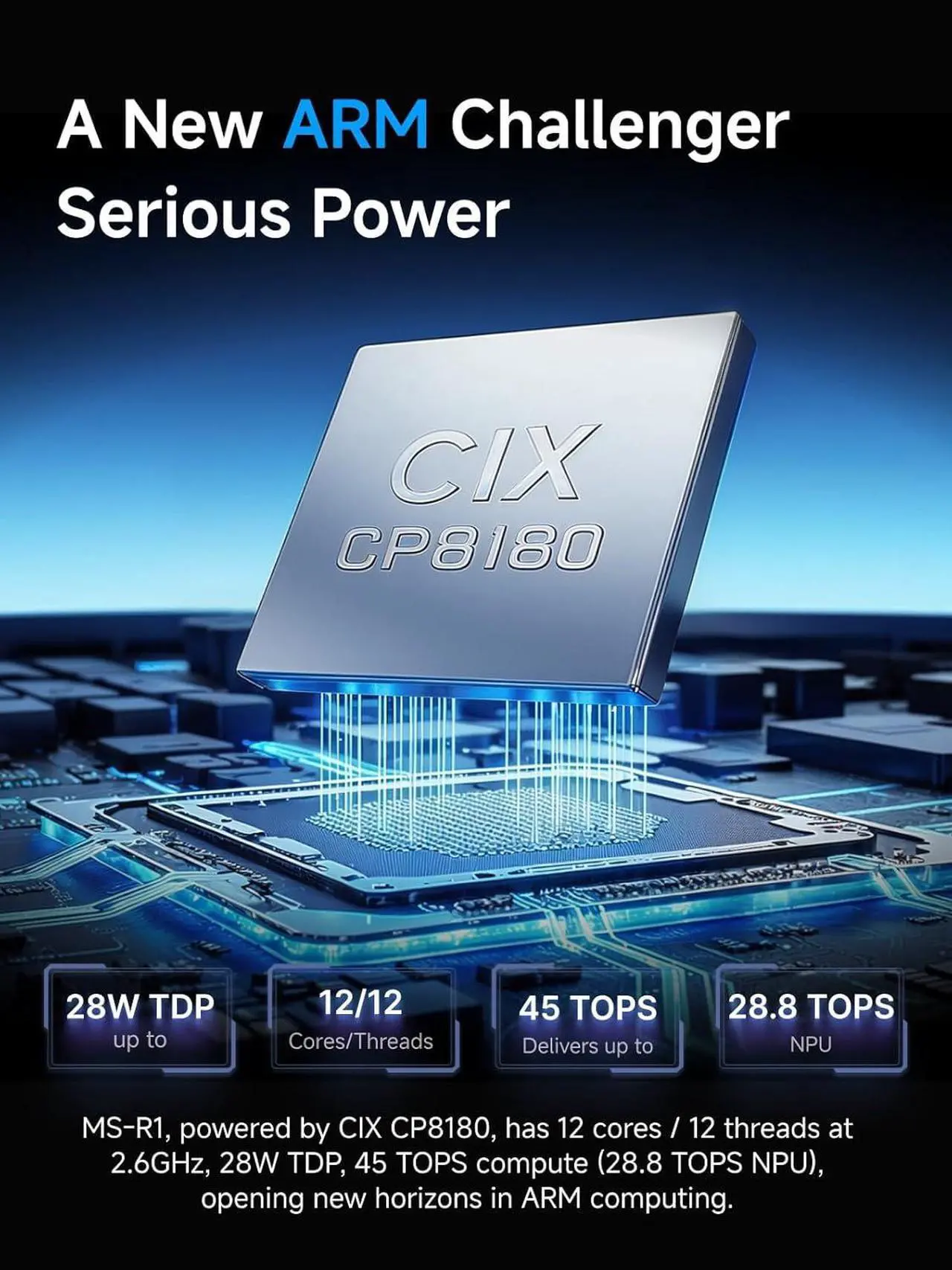

• 【ARM Processor Performance】This MINISFORUM MS-R1 Mini Workstation redefines ARM computing with the CIX CP8180 processor, delivering near-x86 performance and scalability.12 cores / 12 threads at 2.6GHz frequency balanced multi-tasking and energy efficiency. 28W TDP optimized for compact workstation form factors, 45 TOPS total compute (including 28.8 TOPS NPU acceleration) empower AI inference, edge computing, and next-gen ARM applications.

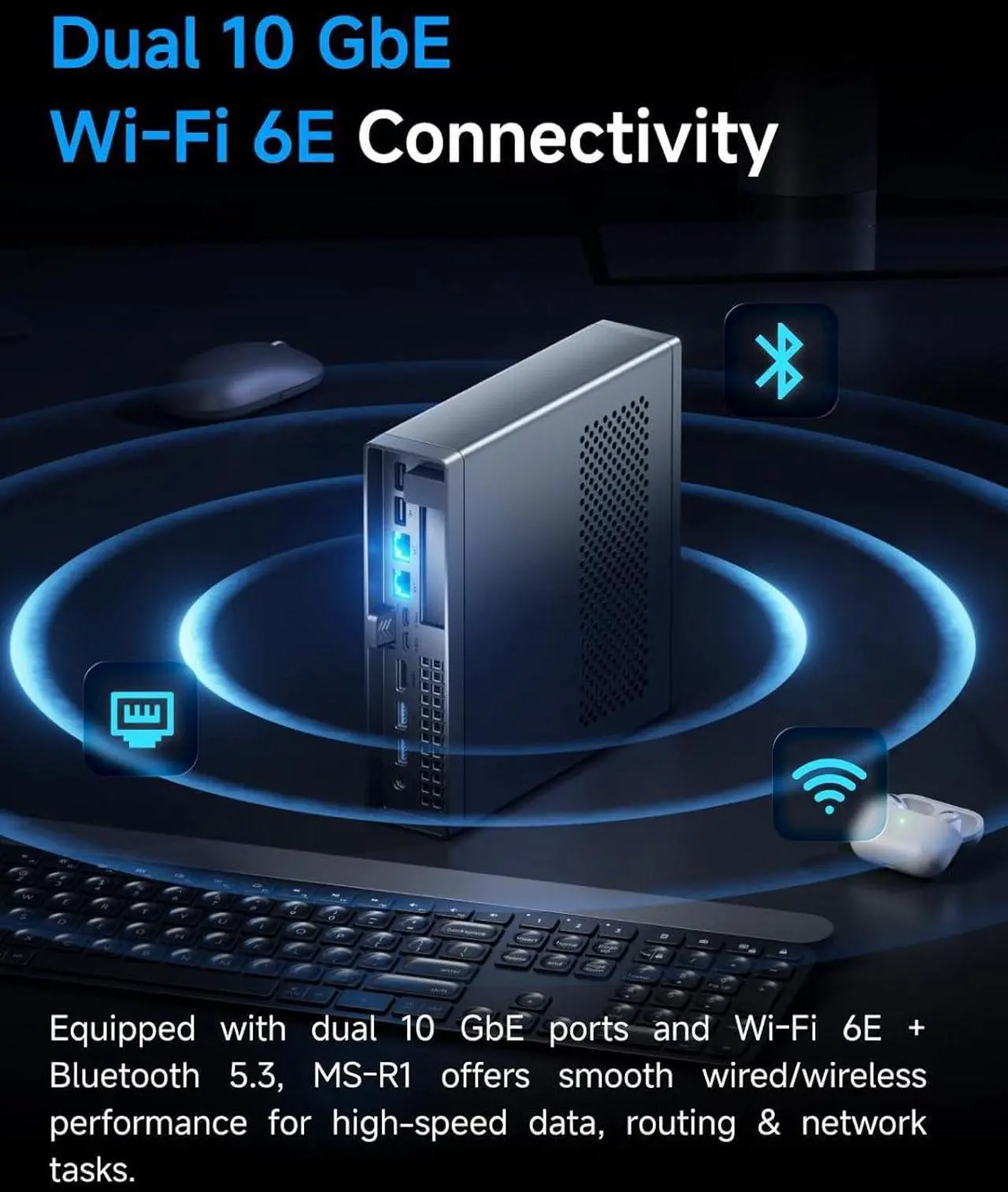

• 【Blazing-Fast & Stable Networking】This Workstation comes with​ 2× 10GbE RJ45 ports, th​e enterprise-grade wired performance for high-speed data transfer, routing, and network-intensive tasks.​ Wi-Fi 6E + Bluetooth 5.3 can Rock-solid wireless connectivity for ultra-low-latency collaboration and seamless home/office network integration. Perfect for scenarios demanding lightning-fast transfers—from real-time 4K streaming to large-file backups.
• 【Triple-Display Productivity & Expansive Storage】1× HDMI + 2× USB-C (DP Alt Mode) for immersive multitasking and expanded field of view. Supports 1x M.2 2280/22110 (up to 8TB)—run resource-heavy software, store massive media libraries, and edit 4K videos stress-free.
• 【Comprehensive Connectivity】1× HDMI, 2× USB-C, 2× 10GbE RJ45, 3× USB 3.2 Gen 2, 5× USB 2.0, 1x3.5mm combo jack, 1x power button. No dongles required—connect peripherals, displays, and networks effortlessly.
• 【Package Contents】1x MINISFORUM MS-R1 Mini Workstation, 1x HDMI cable, 1x US power adapter, 1x Manual.
