Network Switch N3K-C3172TQ-XL

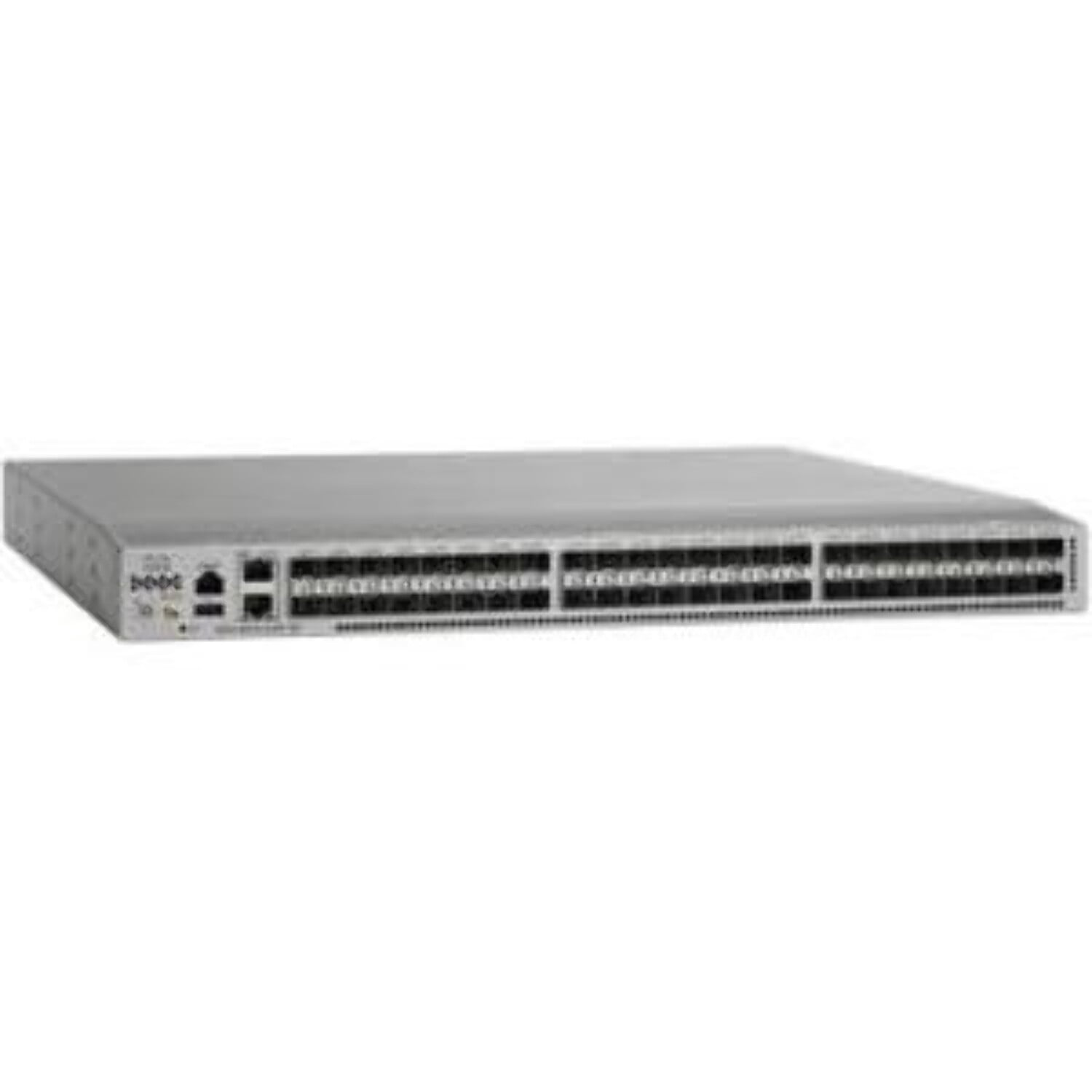

<div></div> <div></div> <div></div> <p><strong><span>Product Overview</span></strong></p> <p>The Cisco Nexus<span>^®</span>&nbsp;3172PQ, 3172TQ, 3172TQ-32T, 3172PQ-XL, and 3172TQ-XL Switches are dense, high-performance, 10- and 40-Gbps Layer 2 and 3 switches that are members of the Cisco Nexus 3100 switch platform. All switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. The Cisco Nexus 3172 switches run the industry-leading Cisco<span>^®</span>&nbsp;NX-OS Software operating system, which helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. These switches also support forward and reverse airflow (port-side exhaust and port-side intake) schemes with AC and DC power inputs.</p> <p>Five Cisco Nexus 3172 switches are available:</p> <p><span>●<span>&nbsp;&nbsp;&nbsp;</span></span>The Cisco Nexus 3172PQ (Figure 1) is a 10-Gbps Enhanced Small Form-Factor Pluggable (SFP+)–based ToR switch with 48 SFP+ ports and 6 Quad SFP+ (QSFP+) ports. Each SFP+ port can operate in 100-Mbps, 1‑Gbps, or 10-Gbps mode, and each QSFP+ port can operate in native 40-Gbps or 4 x 10-Gbps mode. This switch is a true phy-less switch that is optimized for low latency and low power consumption.</p> <p>&nbsp;</p> <p>&nbsp;</p> <div>1x used&nbsp;<span>N3K-C3172TQ-XL nexus switch. tested&nbsp;</span> <div> <p><span>Active Package(s):</span></p> <p><span>switch# sh inv</span></p> <p><span>NAME: "Chassis",&nbsp; DESCR: "Nexus 3172T Chassis"</span></p> <p><span>PID: N3K-C3172TQ-XL&nbsp; &nbsp; &nbsp; ,&nbsp; VID: V00 ,&nbsp; SN: FOC1937R </span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Slot 1",&nbsp; DESCR: "48x10GT + 6x40G Supervisor"</span></p> <p><span>PID: N3K-C3172TQ-XL&nbsp; &nbsp; &nbsp; ,&nbsp; VID: V00 ,&nbsp; SN: FOC193 </span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Power Supply 1",&nbsp; DESCR: "Nexus 3172T Chassis Power Supply"</span></p> <p><span>PID: NXA-PAC-500W&nbsp; &nbsp; &nbsp; &nbsp; ,&nbsp; VID: V01 ,&nbsp; SN: LIT19310KH3</span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Power Supply 2",&nbsp; DESCR: "Nexus 3172T Chassis Power Supply"</span></p> <p><span>PID: NXA-PAC-500W&nbsp; &nbsp; &nbsp; &nbsp; ,&nbsp; VID: V01 ,&nbsp; SN: LIT19310KGD</span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Fan 1",&nbsp; DESCR: "Nexus 3172T Chassis Fan Module"</span></p> <p><span>PID: N3K-C3072-FAN &nbsp; &nbsp; &nbsp; ,&nbsp; VID: V00 ,&nbsp; SN: N/A</span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Fan 2",&nbsp; DESCR: "Nexus 3172T Chassis Fan Module"</span></p> <p><span>PID: N3K-C3072-FAN &nbsp; &nbsp; &nbsp; ,&nbsp; VID: V00 ,&nbsp; SN: N/A</span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Fan 3",&nbsp; DESCR: "Nexus 3172T Chassis Fan Module"</span></p> <p><span>PID: N3K-C3072-FAN &nbsp; &nbsp; &nbsp; ,&nbsp; VID: V00 ,&nbsp; SN: N/A</span></p> <span><span><span><br></span></span></span> <p><span>NAME: "Fan 4",&nbsp; DESCR: "Nexus 3172T Chassis Fan Module"</span></p> <p><span>PID: N3K-C3072-FAN &nbsp; &nbsp; &nbsp; ,&nbsp; VID: V00 ,&nbsp; SN: N/A</span></p> <span><span><span><br></span></span></span> <p><span>switch# sh env</span></p> <p><span>Power Supply:</span></p> <p><span>Voltage: 12 Volts</span></p> <p><span>-----------------------------------------------------------</span></p> <p><span>PS&nbsp; Model&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Input Power &nbsp; &nbsp; &nbsp; Current &nbsp; Status</span></p> <p><span>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Type&nbsp; (Watts) &nbsp; &nbsp; (Amps)</span></p> <p><span>----------------------------</span></p></div></div>
