DY2015A 12V Digital Multimeter Tools Lead Acid CCA Load Battery Charge Test Battery Teste For Vehicles Trucks Motorcycle ,Fast and Accurate Precise

<p>1. Storage battery tester is used for activated style lead-acid storage battery, along with checking battery life time and the following conditions of the battery, starting up, charging, and electrical loading</p><p>2. With great design, easy operation, precise reading, complete functions, this tester supply the readings by a large LCD and hints by sound and light when testing.</p><p>3. Precise circuit and strong digital processing unit make it complete collection of a series of complicated data and figure out every test data</p><p>4. Storage battery tester strengthens input protection inside , in order to prevent such situations as polar reversal connection , over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.</p><p>5. Anti-slip rubber sleeve provide a safe operate condition</p>

• DY2015A 12V Digital Multimeter Tools Lead Acid CCA Load Battery Charge                        Test Battery Teste For Vehicles Trucks Motorcycle
• Selling Point:
• Storage battery tester fit for all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery. It is available to vehicle of 12V storage battery. The working voltage of tester is DC 9V to 35V. Do please do not check the series connection battery with the tester.
• Standard of optional storage battery: CCA: 100-1700; IEC: 100-1000; EN:100-1700 DIN:100-1000; JIS: need to compare CCA with a table(the table is included in user manual). Generally,battery standard was marked on battery body. In case there is no mark.

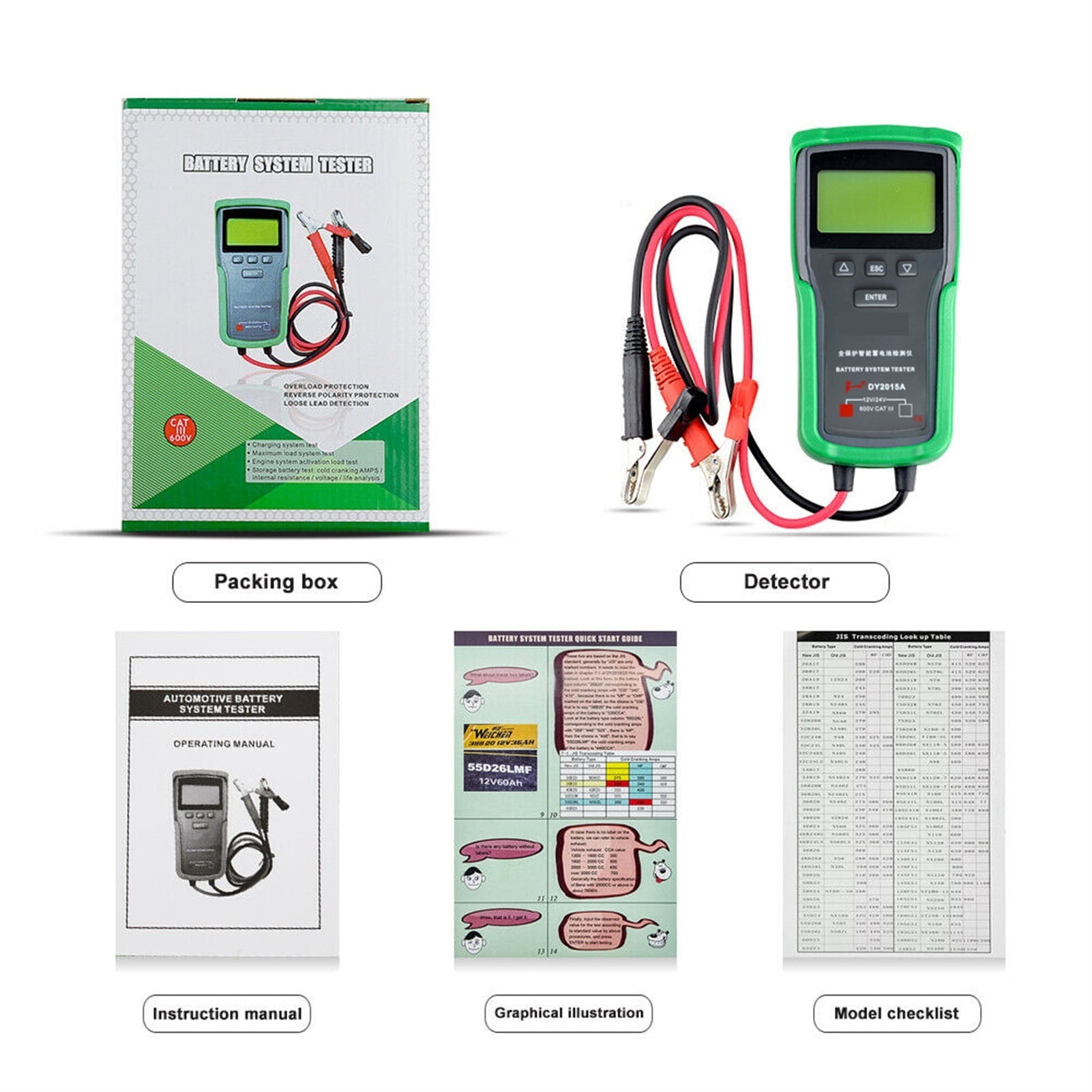

• Package include:
• 1x Storage battery tester
• 1x Rubber protect sleeve
• 1x User manual (in English)
• 1x Quick guide
• 1x DIN.EN transcoding table

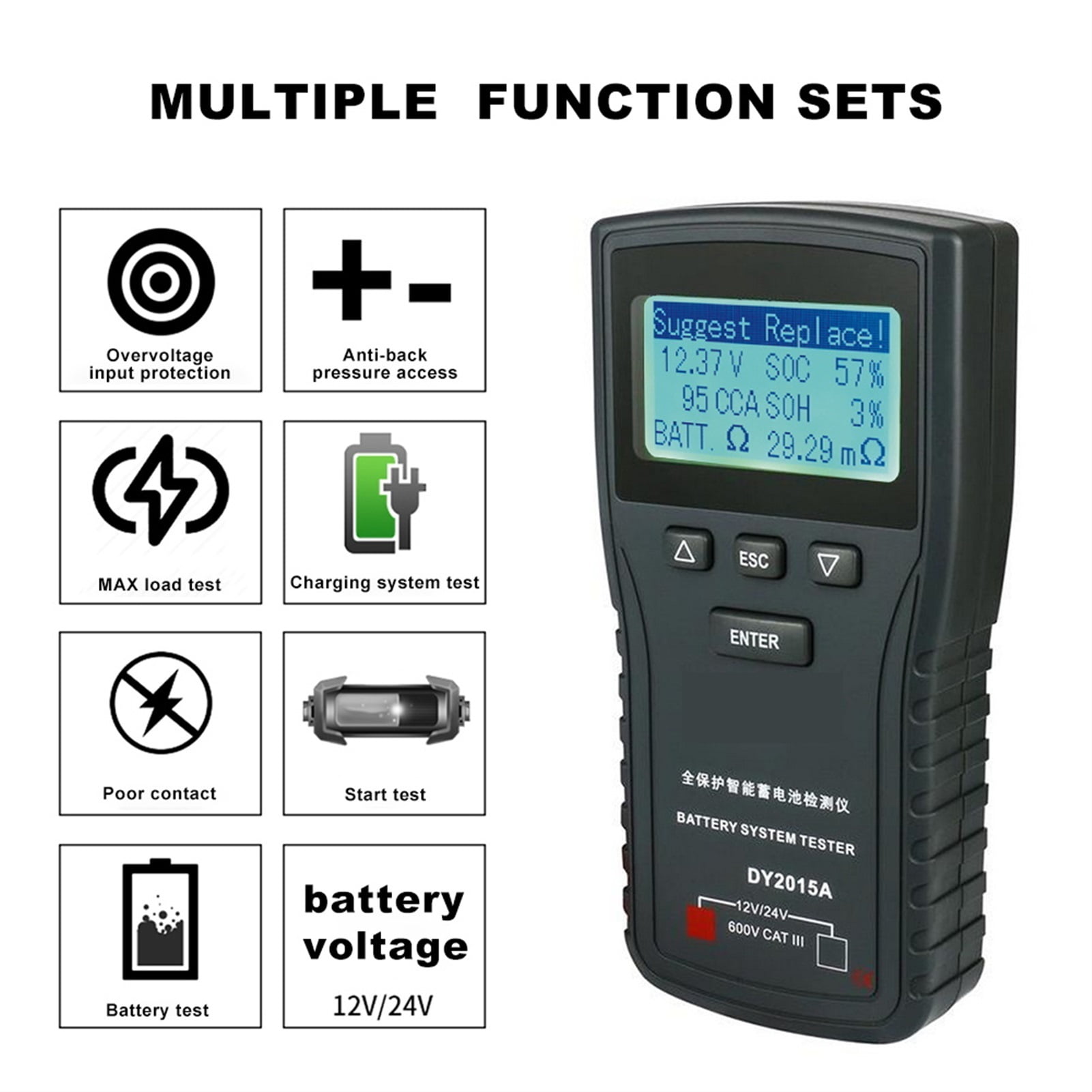

• The Product Features
• FOUR  MAIN  FUNCTIONS
• The larger the CCA value of the battery , the internal resistance is generally smaller.
• Note:
• Preparation before testing - When the car is started, first turn off the fire and turn the key to the OFF position.
• The standard voltage is 9.6V. The test result is more than 9.6V,the boot system is normal. (Otherwise,the boot system is abnormal.)
• Note:
• Preparation before testing - When the car is started, first turn off the fire and turn the key to the OFF position.
• If the voltage reading is less than 12.8V (For 24V system , the reading is less than 25.60V)
• Please check whether the generator belt is worn and the wire is short-circuited or not .
• Note: Preparation before testing - When the car is off, please start the car engine first.
• If the voltage reading > 15.0V (for 24V system , reading > 30.00V), please check the regulator
• If the voltage reading is <13.3V (for 24V system , reading > 26.60V), please check the connection point, wires and engine.
• Note: Preparation before testing - When the car is off, please start the car engine first.
• MODEI
• DY2015
• DY2015A
• Battery type
• Lead- acid battery
• Battery voltage
• 12V
• 12/24V
• Battery range
• 100-1700CCA
• Voltage range
• DC 9-18V
• DC 9-35V
• Battery Internal Resistance
• 0-99m
• Battery Status of Health(SOH)
• 0-100%
• Battery Status of Charge(SOC)
• 0-100%
• Operating temperature
• -18~50
• Operating Language
• English
• Testing method
• 4-wire Kelvin test connection
• Display Battery Internal Resistance
• Display ohms
• Display ohms
• Display Battery Voltage
• Display volts
• Display volts
• Display Battery condition
• Good/ok/attention/replace
• Ah Input Quick Test
• yes
• yes
• Maximum Load Test
• yes(On car)
• yes(On car)
• Engine Cranking Load Test
• yes
• yes
• Star-up Load Test
• yes
• yes
• Maximum Load Test
• yes
• yes
• Charging system Test
• yes
• yes
• Display Battery Status of Health(SOH)
• yes
• yes
• Reverse Polarity Protection
• yes
• yes
• Loose Lead Detection
• yes
• yes
• Overload Protection
• yes
• yes
• Cable Length
• 700mm
• Dimension
• 180*90*32mm
