Linear Actuator 12V 24V DC Stroke 50mm 100mm 150mm 200mm 250mm 300mm 350mm 400mm 500mm 600mm Heavy Duty Electric Linear Actuators Motor for Recliner Medical Device ( Size : 24V-100mm-10mm/s-4000N )
4.8 (142 items)
Limited Time Sale$50.49 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219314838 | Release Date | 2026/05/03 | List Price | $33.66 | Model Number | 219314838 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

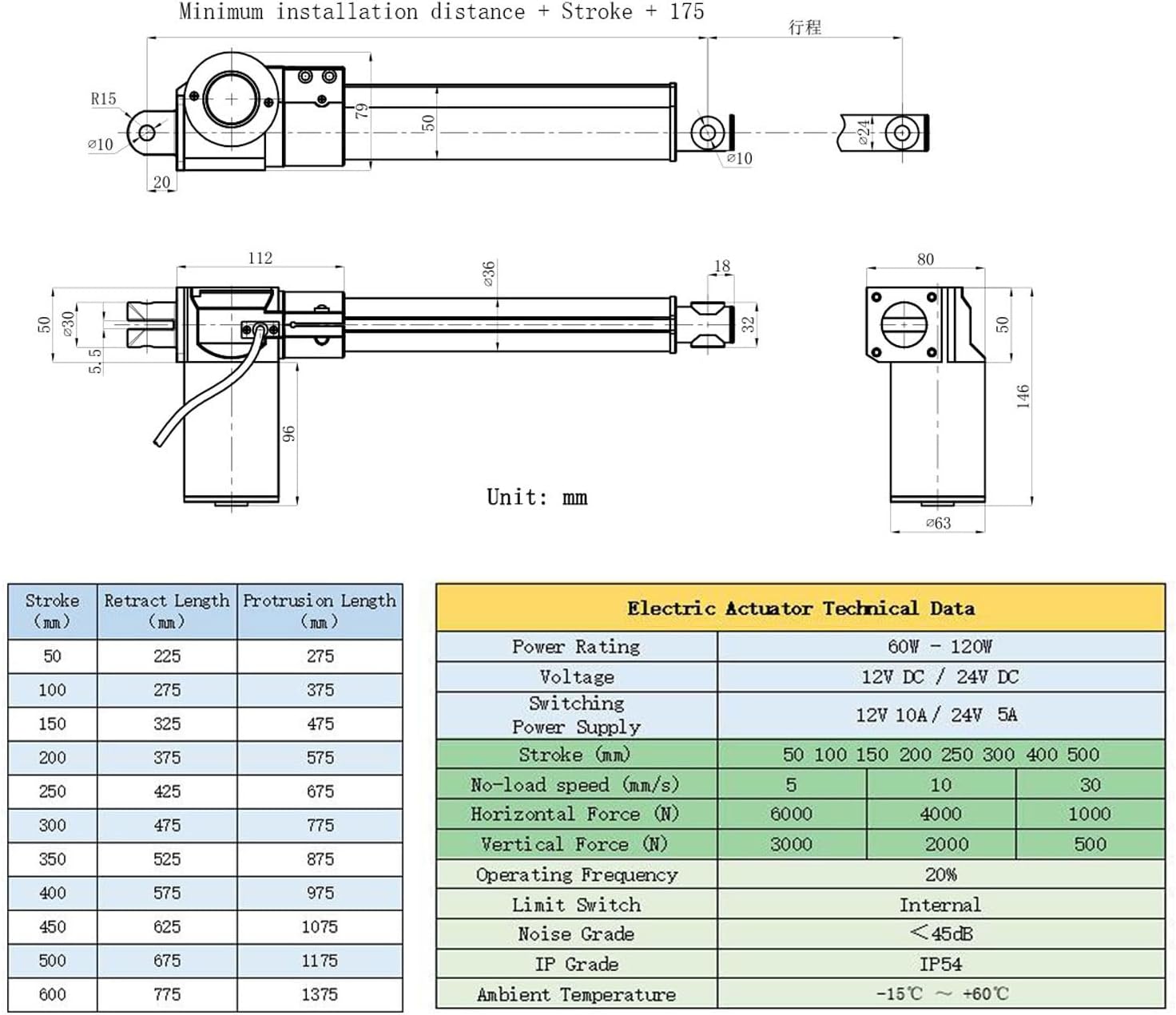

The DC 12V/24V heavy-duty electric linear actuator motor is a sturdy and reliable actuator designed with IP54 protection level. It can be used for some heavy-duty work in different fields such as furniture, Medical Devices, industry, etc.INSTRUCTIONS FOR USE AND PRECAUTIONS:1. The linear actuator motor cannot work continuously for a long time. The push rod operation rate is 20%, continuous operation for 2 minutes and rest for 8 minutes.2. The push rod motor has a built-in limit switch, which automatically stops (extends to the top/retracts to the bottom) and stops when the power is cut off at any time.3. The automatic actuator motor stroke is not adjustable. The actuator is non-waterproof,4. After the actuator speed is selected, the actuator speed can be adjusted by adjusting the voltage. It can only be adjusted lower, not faster.SPECIFICATIONSMaterial: Aluminum AlloyInput Voltage: DC12V-10A; DC24V-5A;Stroke Length: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mmThrust: 1500N -6000N optionalTravel Speed Without Load: 5mm/s , 10mm/s , 30mm/s Duty Cycle: 20% Protection Class: IP54Working Temperature: -15ºC to 60ºCPackage Content1 x Linear Actuator
- 【SPECIFICATION】Input: DC12V-10A; DC24V-5A; Optional Stroke Length: 50mm, 100mm, 150mm, 200mm, 250mm, 300nn, 350mm, 400mm, 500mm, 600nm; No-load speed: 5mm/s, 10mm/s, 30mm/s (optional); Max Push Load: 1500N - 6000N (optional)
- 【MATERIAL】High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor, Built-in high quality limit switch

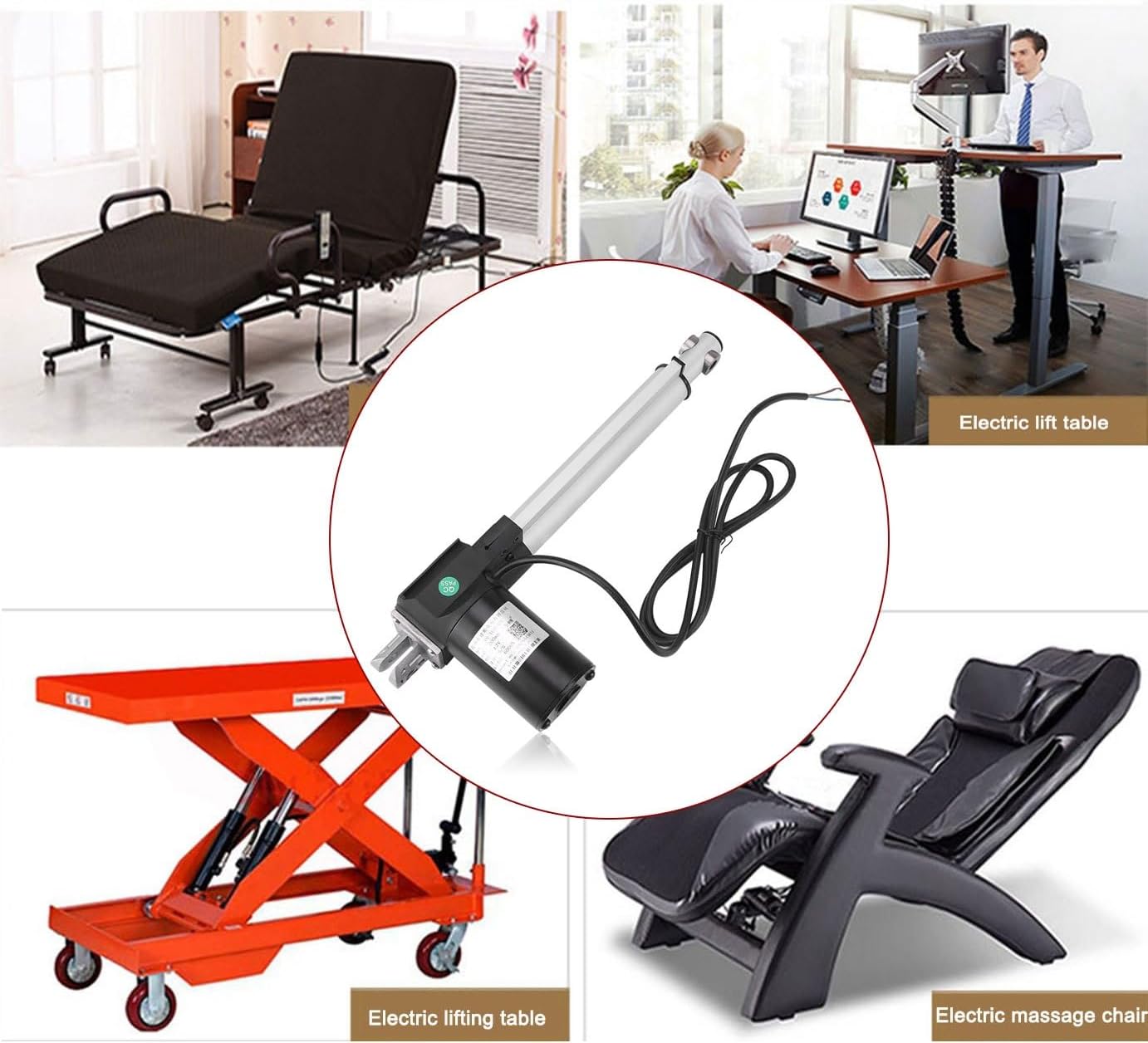

- 【PROTECTION CLASS IP54】Recommended for indoor use. Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table etc.
- 【DC 12V/24V ELECTRIC MOTOR】This linear motion actuator can provide max.6000N pushing force and 3000N pulling force, easily to lift up or down beds, industrial equipment.

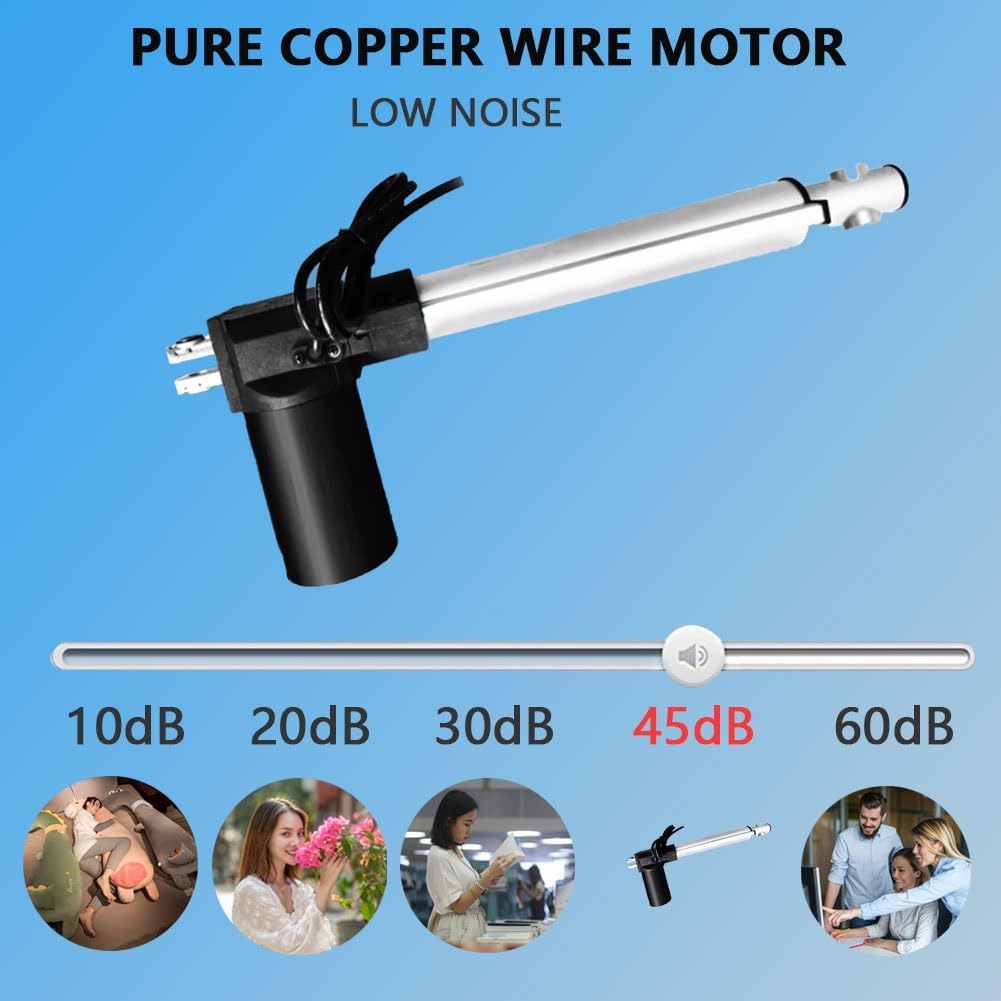

- 【LOW NOISE】This linear actuator works with Max.45db sound, quiet on working, not to create annoying sound.
| Department | unisex-adult |
|---|---|
| Item Weight | 0.035 ounces |
| Manufacturer | Koncey |
| Package Dimensions | 39.76 x 17.72 x 6.69 inches |
