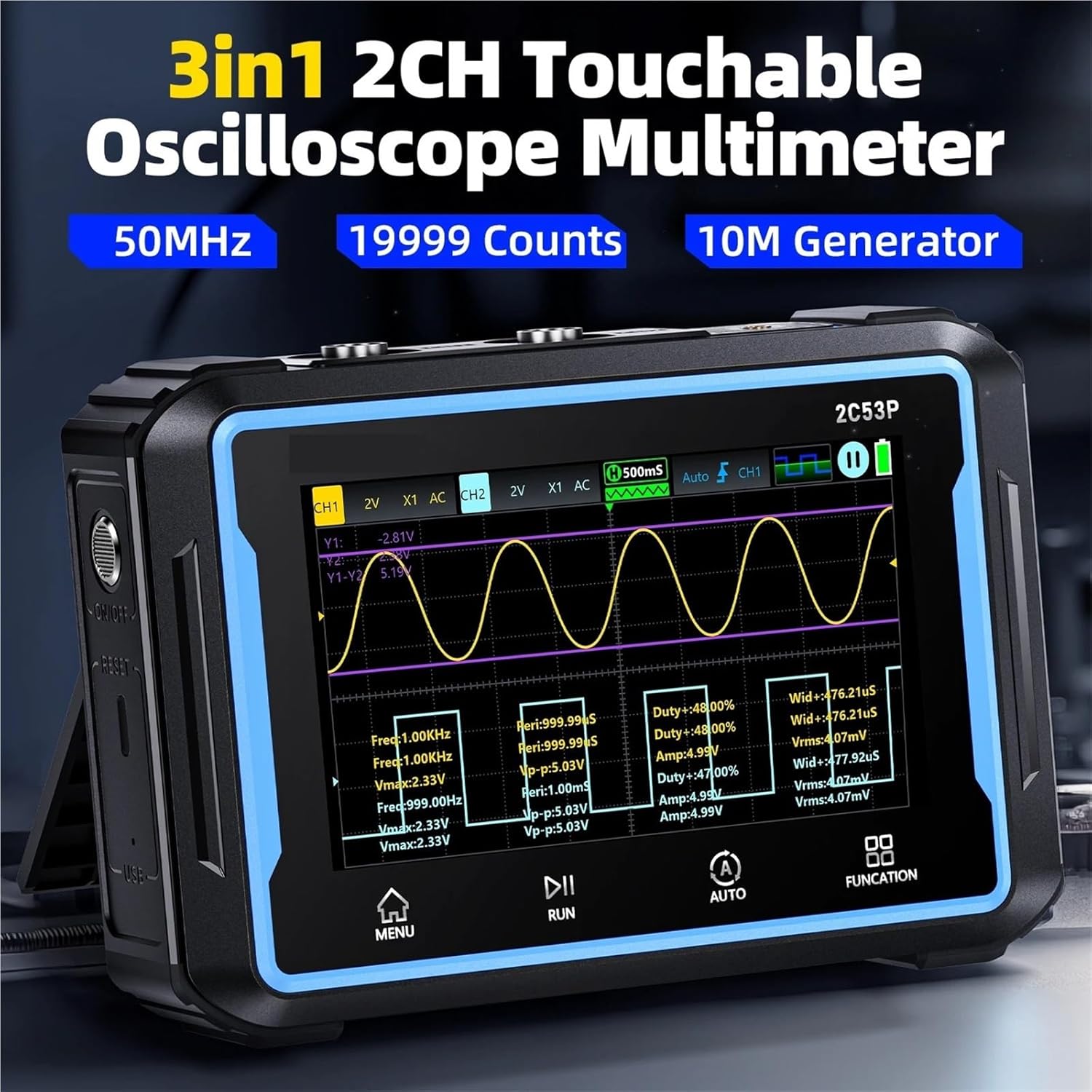

2C53P 3-in-1 Dual Channel Digital Oscilloscope+Multimeter+Signal Generator 4.3" Touch Screen 50MHz 250Ms/S 19999 Counts

Digital Signal Processors2C53P 3-IN-1 Dual Channel Digital Oscilloscope+Multimeter+Signal Generator 4.3" Touch Screen 50MHz 250Ms/S 19999 Counts-2C53P is a three-in-one dual-channel model launched by with comprehensive functions and high practicality, targeting people in the maintenance and R&D industriesWord oscilloscope This device has three major functions oscilloscope multimeter and signal generator The oscilloscope adopts FPGAMCU+ADC hardware architecture and hasIt has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and supports a maximum peak voltage measurement of ±400V; supports waveform screenshots.Save and view to facilitate secondary analysis. The multimeter function is 4 and a half digits and 19999 points of true RMS, supporting AC and DC voltage and current measurements, capacitance, resistance,With measuring functions such as diode, continuity, temperature, etc., it is an ideal multi-functional instrument whether used by professionals, factories, schools, enthusiasts or families. InsideSet up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 10MHz, with a step of 1Hz; output frequency, amplitude, and duty cycleAdjustable. It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery with a standby time of up to 4 hours. With small sizeProvide users with more and stronger practical functions, while also having good portability.Oscilloscope: Channel:Dual channel Analog bandwidth:50MHz Real-time sample rate:250MSa/s Storage depth:Up to 64kByte Input mpedance:1M Time base range:10ns/div - 10s/div Vertical sensitivity:10mv/div - 10v/div Vertical resolution8 bits Maximum measured voltage:±400V Probe:1x/10x torage space:13 Bandwidth limitSupport 20MHz limit Trigger mode:AUTO/Normal/Single Trigger type:Rising edge, Falling edge Trigger level range:8 cells (positive/negative) Waveform display mode:XY/YT/Scroll Coupling method:AC/DC Measured data:Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width Math alculations:1+2,1-2,1*2,1/2,-1,-2,|1|,|2|,FFT Save waveform screenshot:Yes Export waveform images from computer:YesMultimeter:DC Voltage:1.9999V/19.999V/199.99V/1000.0VAC voltage:1.9999V/19.999V/199.99V/750.0VDC current:19.999mA/199.99mA/1.9999A/9.999AAC current:19.999mA/199.99mA/1.9999A/9.999AResistance:19.999M/1.9999M/199.99K/19.999K/1.9999K/199.99Capacitance:999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mFTemperature:(-55~1300)/(-67~2372)Diode:YesContinuity test:YesSignal Generator:Channel:Single channelFrequency:0-10MHz(Sine wave: 10MHz, other waveforms 5MHz)Amplitude:0.1V-3.0VSquare wave duty cycle0-100%Signal type:sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulseBasic Parameters:Screen size & resolution43 Inch 480272 pixelsScreen materialSurface tempered glassSurface tempered glass touch screen made of glass GLASS + IPS color screenBacklightBacklight brightness can be setPower supply:TYPE-C(5V/2A)Battery:4000mAh lithium batteryLanguage:Chinese, English, Pycc, , español, Português, , Product size:about 145x98x35mmProduct net weight:about 360g2C53P Standard Package Included:1*2C53P(2CH Touchable Oscilloscope Multimeter 3in1)2*P6100 Probe1*Multimeter probe 1*Alligator clip probe1*Data cable1*Product Manual==========Battery Included : YesHigh-concerned chemical : NoneIS Battery Demountable : NoModel Number : 2C53PCertification : DIY Supplies : ElectricalBand Width : 60-99MHzDigital Channels : 2 Model : 2C53PDisplay Size : 3.0 - 4.9 Inches Model : 2C53PTemperature : -55~1300 / -67~2372Diode/ON-OFF : YESChannel : Dual channelBand Width : 50MHzReal-time sampling rate : 250MSa/sTime base range : 10ns/div - 10s/divVertical Sensitivity : 10mv/div - 10v/divInput Impedance : 1MPeak Voltage : ±400VInput Coupling : AC/DCBandwidth limit : Support 20MHz limitTrigger Mode : Auto/Normal/SingleProbe Attenuation Coefficient : 1x/10xWaveform Display Mode : YT/XY/scrollStorage Depth : Up to 64kByteWaveform Frequency : 0-10MHzDifferent Waveform Output Frequencies : Sine wave: 10MHz, other waveforms 5MHzWaveform Amplitude : 0.1V-3.0VSquare Wave Duty Cycle : 0-100%
